ISL6627IRZ - Renesas Electronics

Description: The ISL6627 is a high frequency MOSFET driver designed to drive upper and lower power N-Channel MOSFETs in a synchronous rectified buck converter topology. The advanced PWM protocol of ISL6627 is specifically designed to work with Intersil VR11. 1, VR12 controllers and combined with N-Channel MOSFETs to form a complete core-voltage regulator solution for advanced microprocessors. When ISL6627 detects a PSI protocol sent by an Intersil VR11. 1, VR12 controller, it activates Diode Emulation (DE) operation; ot

Download ISL6627IRZ Model

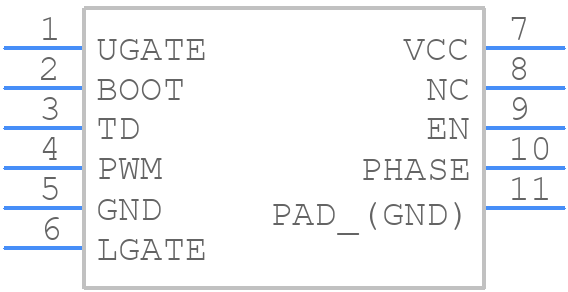

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ISL6627IRZ - Renesas Electronics PCB footprint - Other - Other - L10.3x3
click to zoom
3D Models
ISL6627IRZ - Renesas Electronics  - 3D model - Other - L10.3x3
click to zoom

ISL6627IRZ Details

  • Manufacturer Part Number:

    ISL6627IRZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DFN

  • Package Description:

    DFN-8

  • Pin Count:

    10

  • Manufacturer Package Code:

    L10.3X3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    36 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ISL6627IRZ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ISL6627IRZ involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it is recommended to use a separate power plane for the input and output voltages to reduce noise and improve performance.
  • The selection of input and output capacitors for the ISL6627IRZ depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. The input capacitor should be able to handle the input voltage ripple, while the output capacitor should be able to handle the output voltage ripple and provide sufficient filtering. A minimum capacitance of 10uF is recommended for both input and output capacitors.
  • The maximum operating temperature range for the ISL6627IRZ is -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures, and it is recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance.
  • To troubleshoot issues with the ISL6627IRZ, start by checking the input voltage, output voltage, and current levels to ensure they are within the recommended specifications. Check the PCB layout and component selection to ensure they meet the recommended guidelines. Use an oscilloscope to check for voltage ripple, noise, and oscillations. Also, check the device's thermal performance by measuring the junction temperature and ensuring it is within the recommended specifications.
  • Yes, the ISL6627IRZ is suitable for high-reliability and high-availability applications. It has a high MTBF (Mean Time Between Failures) rating and is designed to meet the requirements of demanding applications such as industrial, medical, and aerospace. However, it is recommended to follow proper design and manufacturing guidelines, and to perform thorough testing and validation to ensure the device meets the specific application requirements.
