Description:The ISL6730A, ISL6730B, ISL6730C, ISL6730D are active Power Factor Correction (PFC) controller ICs that use a boost topology. The controllers are suitable for AC/DC power systems, up to 2kW and over the universal line input. The ISL6730A, ISL6730B, ISL6730C, ISL6730D operate in Continuous Conduction Mode (CCM). Accurate input current shaping is achieved with a current error amplifier. A patent pending breakthrough negative capacitance technology minimizes zero crossing distortion and reduces the magnetic co
The recommended PCB layout for the ISL6730DFUZ involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a separate ground plane to minimize noise and EMI.
The selection of external components for the ISL6730DFUZ depends on the specific application requirements, such as the input voltage, output voltage, and output current. A good starting point is to use the component selection guidelines provided in the datasheet, and then simulate the design using a tool like LTspice to ensure the desired performance is achieved.
The ISL6730DFUZ has a maximum ambient operating temperature of 85°C, but it's recommended to derate the output current at higher temperatures to ensure reliable operation. The datasheet provides a thermal derating curve to help determine the maximum output current at different ambient temperatures.
To troubleshoot issues with the ISL6730DFUZ, start by checking the input voltage, output voltage, and output current to ensure they are within the specified ranges. Then, check the PCB layout and component selection to ensure they meet the recommended guidelines. Use an oscilloscope to measure the output voltage ripple and switching frequency, and check for any signs of overheating, such as excessive temperature rise or thermal shutdown.
Yes, the ISL6730DFUZ is suitable for high-reliability and automotive applications, as it meets the requirements of the AEC-Q100 standard for automotive-grade ICs. However, it's essential to follow the recommended design guidelines and testing procedures to ensure the device meets the specific requirements of the application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6730DFUZ Overview

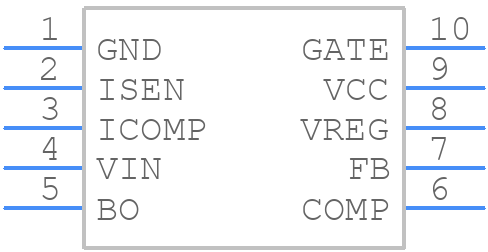

Use the download button to access the ISL6730DFUZ schematic symbol, PCB footprint, and 3D model.
