ISL6740AIVZA - Renesas Electronics

Description: The ISL6740A is an enhanced ISL6740 PWM controller featuring built-in voltage feed forward functionality. It is pin and feature compatible with the ISL6740 double-ended pulse width modulating (PWM) voltage-mode controller, allowing easy drop-in replacement on existing designs. Voltage feed forward compensates for input voltage variation without intervention of the feedback control loop. It is particularly useful in unregulated bus converters and DC transformers where wide input voltage variation would other

Download ISL6740AIVZA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

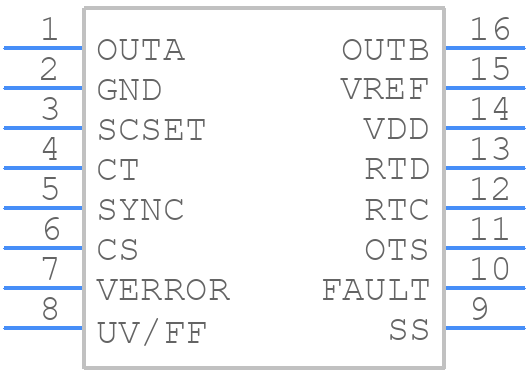

ISL6740AIVZA - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M16.173
click to zoom
3D Models
ISL6740AIVZA - Renesas Electronics  - 3D model - Small Outline Packages - M16.173
click to zoom

ISL6740AIVZA Details

  • Manufacturer Part Number:

    ISL6740AIVZA

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    M16.173

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Additional Feature:

    OUTPUT VOLTAGE IS 1V

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    4.9 V

  • Input Voltage-Nom:

    9 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1000 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ISL6740AIVZA Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal performance involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input and output voltages to reduce noise and EMI.
  • To ensure stability and prevent oscillations in the output voltage, it's essential to follow the recommended compensation network configuration, choose the correct output capacitor type and value, and ensure that the input voltage is within the specified range. Additionally, it's recommended to add a small ceramic capacitor (e.g., 10nF) in parallel with the output capacitor to improve stability.
  • The maximum allowed input voltage ripple for the ISL6740AIVZA is 10% of the input voltage. Exceeding this limit may affect the device's performance, stability, and reliability. It's recommended to use a suitable input filter or voltage regulator to ensure that the input voltage ripple is within the specified limit.
  • The ISL6740AIVZA is rated for operation up to 125°C junction temperature. However, it's essential to ensure that the device is properly heatsinked and that the ambient temperature is within the specified range to prevent overheating and ensure reliable operation.
  • The power dissipation and heat generation of the ISL6740AIVZA can be calculated using the following formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Pd is the power dissipation, Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current. The thermal resistance (θJA) of the device is 30°C/W, which can be used to estimate the junction temperature.
