Description:This device is no longer supported and is not recommended for new designs.The ISL68300 with integrated MOSFET drivers and ISL68301 with PWM output simplify designing power supplies for data center, wired and wireless communications, and factory automation equipment. The ISL68300 can drive discrete external MOSFETs directly, while the ISL68301 pairs with Renesas’ smart power stages or DrMOS power stages to create a complete voltage regulator solution.
Renesas provides a recommended PCB layout guide in their application note AN1965, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
The ISL68300IRAZ-TK has a built-in overcurrent protection feature that can be enabled by setting the OCP pin high. Additionally, you can use an external resistor and capacitor to set the overcurrent threshold and response time. Refer to the datasheet and application notes for more details.
Although the datasheet specifies a maximum input voltage of 28V, it's recommended to derate the voltage to 25V to ensure reliable operation and prevent damage to the device. Consult with Renesas support or a qualified engineer for specific guidance.
The ISL68300IRAZ-TK is rated for operation up to 125°C, but it's essential to consider the device's power dissipation, thermal management, and derating factors when operating in high-temperature environments. Consult the datasheet and thermal management guidelines for more information.
Renesas provides a troubleshooting guide in their application note AN1964, which covers common issues, diagnostic techniques, and repair procedures. Additionally, consult the datasheet and contact Renesas support for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL68300IRAZ-TK Overview

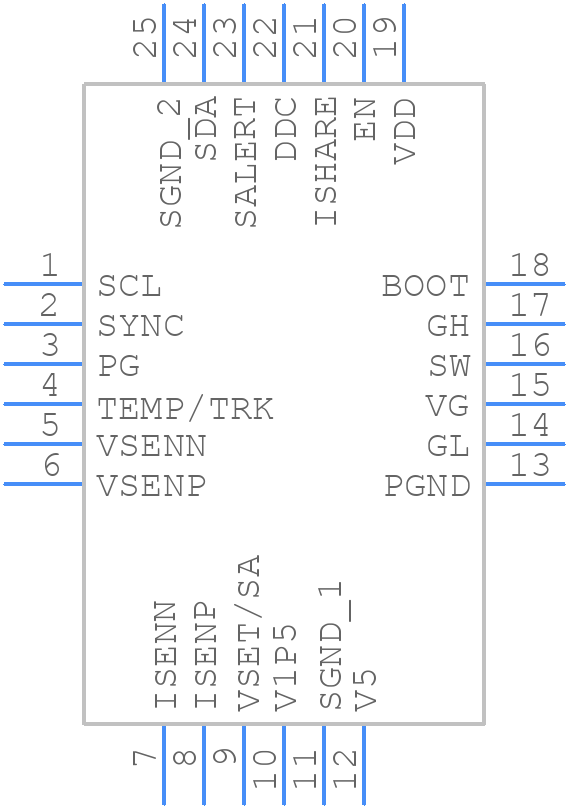

Use the download button to access the ISL68300IRAZ-TK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL68,
or try a keyword search, such as Switching Regulator or Controllers
