Description:The ISL71030M is a radiation tolerant, 16-channel multiplexer that is fabricated using the proprietary P6 SOI process technology to provide excellent latch-up performance. It operates with a single supply range from 3V to 5. 5V and has a 4-bit address line plus an enable that can be driven with adjustable logic thresholds to conveniently select one of 16 available channels. An inactive channel is separated from the active channel by a high impedance, which inhibits any interaction between the channels. The
Renesas provides a recommended PCB layout guide in their application note AN1995, which includes guidelines for component placement, thermal management, and routing to minimize noise and ensure optimal performance.
The ISL71030MNZ-T is rated for operation up to 125°C, but it's essential to follow proper thermal management techniques, such as using a heat sink, thermal interface material, and ensuring good airflow. Additionally, consider derating the device's output current and voltage to ensure reliable operation.
Renesas recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. The specific capacitor values and types may vary depending on the application, but X5R or X7R ceramic capacitors are suitable options.
The EN pin is an active-high input, and it's essential to ensure it's properly driven with a logic signal. Check the EN pin's voltage level, and verify that it's not floating or being driven by a weak signal. Also, ensure that the EN pin is not being driven by a signal with excessive ringing or overshoot.
The output pins should not exceed the maximum rated voltage of 6V during startup or shutdown. Exceeding this voltage can cause damage to the device. Ensure that the output voltage is properly clamped or limited during these transitions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL71030MNZ-T Overview

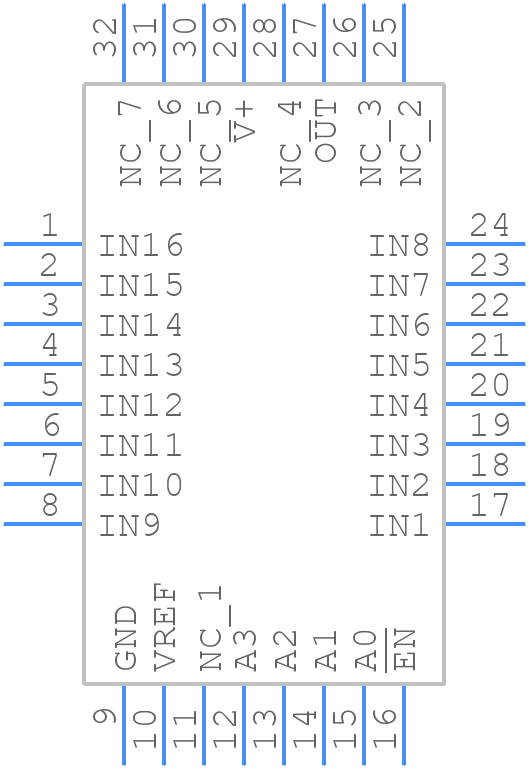

Use the download button to access the ISL71030MNZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL71,
or try a keyword search, such as Multiplexers or Switches
