Description:The ISL71040M is a low-side driver designed to drive enhancement mode Gallium Nitride (GaN) FETs in isolated topologies and boost type configurations. The ISL71040M operates with a supply voltage from 4. 5V to 13. 2V and has both inverting (INB) and non-inverting (IN) inputs to satisfy requirements for inverting and non-inverting gate drives with a single device. The ISL71040M has a 4. 5V gate drive voltage (VDRV) generated using an internal regulator that prevents the gate voltage from exceeding the maximu
Renesas provides a recommended PCB layout guide in the ISL71040MRTZ-T evaluation board user manual, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
To ensure reliable operation in high-temperature environments, it is recommended to follow the thermal management guidelines in the datasheet, including using a heat sink, thermal interface material, and ensuring good airflow. Additionally, consider using a thermistor or temperature sensor to monitor the device temperature and implement thermal shutdown or throttling if necessary.
The internal voltage regulator of the ISL71040MRTZ-T has limitations on its output current, voltage range, and power dissipation. It is recommended to review the datasheet specifications and application notes to ensure the internal regulator can meet the requirements of the system. If the internal regulator is not sufficient, an external voltage regulator may be required.
To troubleshoot issues with the POR circuitry, check the power supply voltage, decoupling capacitors, and reset pin connections. Ensure that the power supply voltage is within the recommended range and that the decoupling capacitors are properly sized and placed. Also, verify that the reset pin is properly connected and not pulled low by any external circuitry.
For rad-hard applications, it is essential to follow the guidelines and recommendations provided by Renesas for radiation testing and qualification. This includes understanding the total ionizing dose (TID) and single-event effects (SEE) ratings, as well as implementing design and layout techniques to mitigate radiation-induced errors and faults.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL71040MRTZ-T Overview

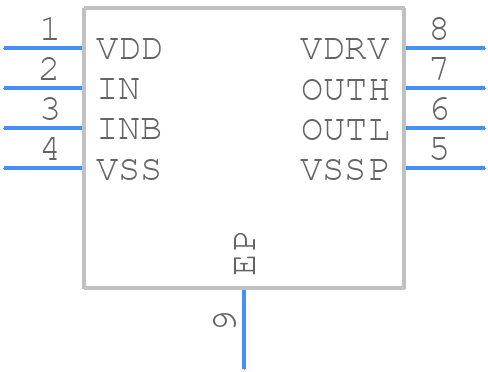

Use the download button to access the ISL71040MRTZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL71,
or try a keyword search, such as MOSFET Drivers
