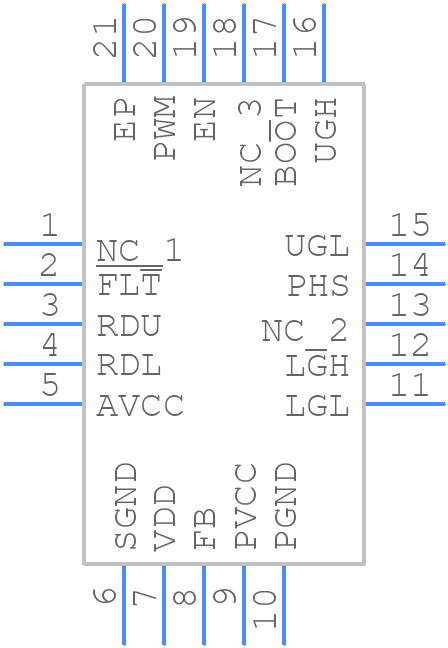

ISL71441M50RZ-T - Renesas Electronics

ISL71441M50RZ-T Details

• Manufacturer Part Number:

  ISL71441M50RZ-T

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  QFN-20

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  18 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  8

• High Side Driver:

  YES

• Input Characteristics:

  SCHMITT TRIGGER

• Interface IC Type:

  HALF BRIDGE BASED GAN FET DRIVER

• JESD-30 Code:

  S-PQCC-N20

• Length:

  5 mm

• Number of Functions:

  1

• Number of Terminals:

  20

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Output Characteristics:

  PUSH-PULL

• Output Peak Current Limit-Nom:

  8 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC20,.20SQ,25

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Seated Height-Max:

  0.9 mm

• Supply Voltage-Max:

  13.2 V

• Supply Voltage-Min:

  4.75 V

• Supply Voltage-Nom:

  4.97 V

• Supply Voltage1-Max:

  5.5 V

• Supply Voltage1-Min:

  4.5 V

• Surface Mount:

  YES

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  QUAD

• Total Dose:

  50k Rad(Si) V

• Turn-off Time:

  0.04 µs

• Width:

  5 mm
