Description:The ISL71610M is a passive-input digital signal isolator with a CMOS output. It has a similar interface but better performance and higher package density than other optocouplers. The ISL71610M is manufactured with Giant Magnetoresistive (GMR) technology for small size, high speed, and low power. A ceramic/polymer composite barrier provides excellent isolation and an unlimited barrier life. A series external resistor sets the input coil current and a capacitor in parallel with the current-limiting resistor p
Renesas provides a recommended PCB layout guide in their application note AN1965, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The ISL71610MBZ-T is designed to be radiation-tolerant and has been tested for SEEs. However, it's essential to follow Renesas' guidelines for radiation-hardened design and testing, as outlined in their application note AN1964, to ensure the device operates correctly in harsh environments.
The ISL71610MBZ-T has a maximum junction temperature of 150°C. To ensure thermal management, Renesas recommends using a thermal pad, thermal vias, and a heat sink, as well as following their guidelines for thermal design and testing, as outlined in their application note AN1965.
While the ISL71610MBZ-T is designed for space and aerospace applications, it can be used in other high-reliability applications. However, it's essential to consult with Renesas and follow their guidelines for non-space applications, as the device may require additional testing and validation.
Renesas provides a range of screening and qualification options for the ISL71610MBZ-T, including lot acceptance testing, radiation testing, and environmental testing. It's essential to work with Renesas to determine the appropriate screening and qualification requirements for your specific application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL71610MBZ-T Overview

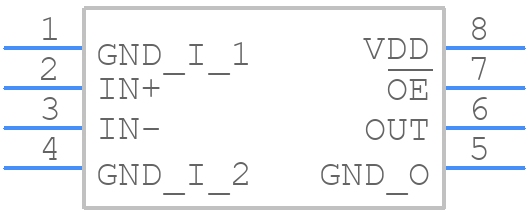

Use the download button to access the ISL71610MBZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL71,
or try a keyword search, such as Other Interface ICs
