Description:The ISL71610M is a passive-input digital signal isolator with a CMOS output. It has a similar interface but better performance and higher package density than other optocouplers. The ISL71610M is manufactured with Giant Magnetoresistive (GMR) technology for small size, high speed, and low power. A ceramic/polymer composite barrier provides excellent isolation and an unlimited barrier life. A series external resistor sets the input coil current and a capacitor in parallel with the current-limiting resistor p
Renesas provides a recommended PCB layout in the ISL71610MBZ evaluation board user manual, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
To ensure the ISL71610MBZ operates within its specified temperature range, it's essential to provide adequate heat sinking, use a thermally conductive PCB material, and avoid exposing the device to extreme temperatures during storage or operation.
The ISL71610MBZ is designed to be radiation-tolerant, but it's still important to follow proper design and layout guidelines to minimize the effects of radiation on the device. Renesas provides radiation testing reports and guidelines for radiation-tolerant design in the device's datasheet and application notes.
Yes, the ISL71610MBZ can be used in non-space or non-aerospace applications that require high-reliability and radiation-tolerant components, such as in medical, industrial, or transportation systems.
Renesas provides a troubleshooting guide in the ISL71610MBZ datasheet and application notes, which includes common issues, symptoms, and solutions. Additionally, Renesas offers technical support and resources to help engineers troubleshoot and resolve issues with the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL71610MBZ Overview

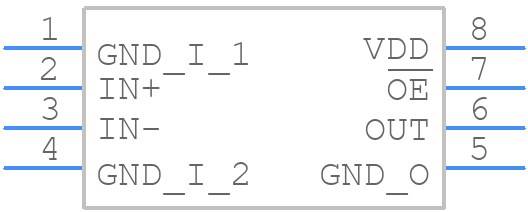

Use the download button to access the ISL71610MBZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL71,
or try a keyword search, such as Other Interface ICs
