ISL74324M50RZ - Renesas Electronics

Description: The ISL74324M is a radiation tolerant 500MHz to 6500MHz SiGe BiCMOS high-gain broadband radio-frequency (RF) amplifier. The combination of a low noise figure (NF) and high linearity performance allows the device to be used in both receiver and transmitter applications.The ISL74324M operates with a single 5V or 3.3V power supply using a nominal 60mA. With a supply voltage of 5V, the ISL74324M provides 16.6dB gain with +38.4dBm OIP3 and 2.2dB noise figure at 4200. Additionally, it is bias adjustable and can b

Download ISL74324M50RZ Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this ISL74324M50RZ model

Email notifications will be applied after download.

Send part feedback

Symbol

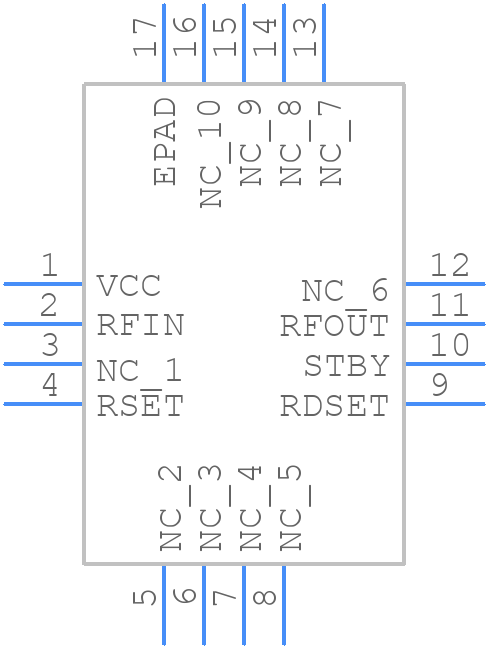

ISL74324M50RZ - Renesas Electronics - PCB symbol

PCB Footprints

ISL74324M50RZ - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L16.3x3g

3D Models

ISL74324M50RZ - Renesas Electronics - 3D model - Quad Flat No-Lead - L16.3x3g

Datasheet Download Datasheet
Stock & Prices Price & Stock for ISL74324M50RZ
Part Number ISL74324M50RZ
Manufacturer Renesas Electronics
Pin Count 17
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - L16.3x3g
Released Date Dec 25, 2025
Last Modified Date Dec 25, 2025 5:19 AM UTC
Pinout / Pin List Click Here (Member Only)

ISL74324M50RZ Details

Manufacturer Part Number:
ISL74324M50RZ
Part Life Cycle Code:
Active
Manufacturer:
Renesas Electronics Corporation
RF/Microwave Device Type:
WIDE BAND LOW POWER

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

ISL74324M50RZ Overview

Use the download button to access the ISL74324M50RZ schematic symbol, PCB footprint, and 3D model.
