Description:The ISL76682 is a low power, high sensitivity, integrated light sensor with I²C (SMBus Compatible) interface. Its state-of-the-art photo-diode array provides close-to human eye response and good IR rejection. This ADC is capable of rejecting 50Hz and 60Hz flicker caused by artificial light sources. The lux range select feature allows you to program the lux range for optimized counts/lux.In normal operation, typical power consumption is 55μA. To further minimize power consumption, two power-down modes have b
Renesas provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for switching regulator layout, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
To ensure stability, make sure to follow the recommended component values and layout, and also consider the output capacitor's ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) when selecting the output capacitor. Additionally, a minimum of 10uF output capacitance is recommended.
While the datasheet specifies a maximum input voltage of 6.5V, it's recommended to derate the input voltage to 6.2V or lower to ensure reliable operation and prevent damage to the IC.
The ISL76682AROZ-T7 is rated for operation up to 125°C, but it's essential to consider the IC's power dissipation and thermal management when operating in high-temperature environments. Ensure proper heat sinking and thermal design to prevent overheating.
Start by checking the input voltage, output voltage, and current consumption using an oscilloscope or multimeter. Verify that the input and output capacitors are properly connected and meet the recommended specifications. Also, check for any signs of overheating or physical damage to the IC.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL76682AROZ-T7 Overview

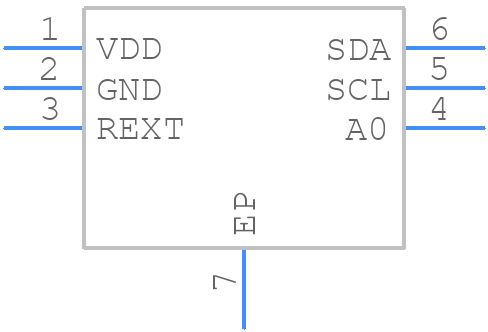

Use the download button to access the ISL76682AROZ-T7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL76,
or try a keyword search, such as Other Sensors/Transducers
