Part Image

ISL78100ARZ-T7A - Renesas Electronics

Description: The ISL78100 is a high-power LED backlight driver with an integrated 36V FET designed to drive up to 8 high-power LEDs in series. The PWM converter runs from an internally generated 1MHz clock. With efficiencies over 90%, the regulator provides tight control of LED current and may be configured in either boost or buck topologies, allowing from 3 to 8 series diodes to be driven from wide input voltages. LED light level may be controlled either by: LED DC bias current set via the LEVEL pin, or External low f

Download ISL78100ARZ-T7A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

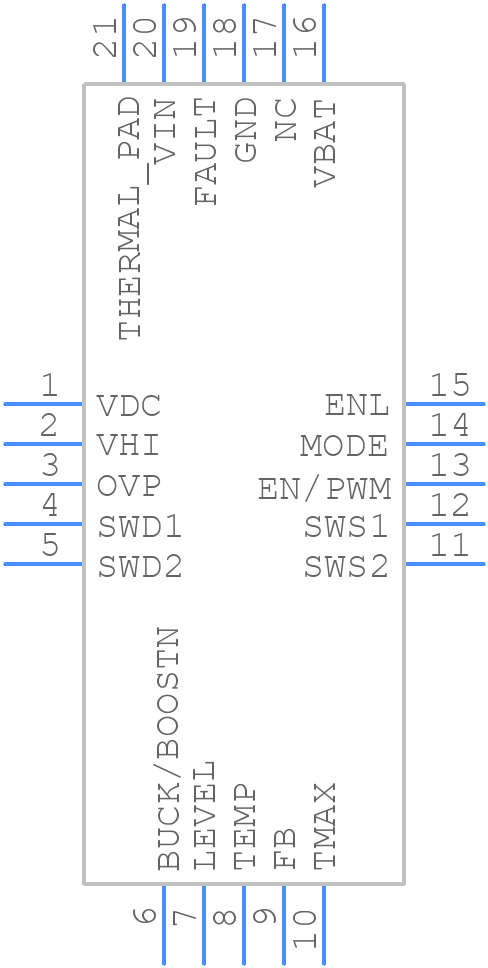

ISL78100ARZ-T7A - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL78100ARZ-T7A - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L20.4x4C-ren1
click to zoom
3D Models
ISL78100ARZ-T7A - Renesas Electronics - 3D model - Quad Flat No-Lead - L20.4x4C-ren1
click to zoom

ISL78100ARZ-T7A Details

  • Manufacturer Part Number:

    ISL78100ARZ-T7A

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    QFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    L20.4X4C

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

ISL78100ARZ-T7A Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout in the application note AN1965, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The selection of input and output capacitors depends on the specific application requirements. Renesas recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and 22uF for the output. The application note AN1965 provides more detailed guidance on capacitor selection.
  • The ISL78100ARZ-T7A is rated for operation from -40°C to +125°C ambient temperature range, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management to prevent overheating.
  • Yes, the ISL78100ARZ-T7A is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, it's essential to follow the recommended design and testing guidelines to ensure compliance with the specific industry standards and requirements.
  • Renesas provides a troubleshooting guide in the application note AN1965, which covers common issues and their solutions. Additionally, the ISL78100ARZ-T7A datasheet provides guidance on debugging and troubleshooting techniques.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISL78100ARZ-T7A Overview

Use the download button to access the ISL78100ARZ-T7A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL78, or try a keyword search, such as Display Drivers
