Description:The ISL78171 is a 6-channel, 50mA, LED driver capable of very high dynamic range dimming. It offers an integrated boost converter, six high precision, adjustable current sinks and a SMBus/I2C interface for digital programmability and extensive diagnostics. These features provide the ISL78171 with the capabilities to design a compact, highly versatile LED backlight for a wide variety of ambient lighting conditions. The integrated peak current mode PWM boost converter operates with a constant frequency and ca
Renesas provides a recommended PCB layout guide in the ISL78171ARZ-T evaluation board user manual, which includes guidelines for component placement, thermal management, and routing to minimize noise and ensure optimal performance.
The selection of input and output capacitors depends on the specific requirements of your application, including the input voltage range, output voltage, and desired ripple and noise performance. Renesas provides guidance on capacitor selection in the datasheet and application notes, and recommends using low-ESR capacitors with a voltage rating that exceeds the maximum input voltage.
The ISL78171ARZ-T is rated for operation from -40°C to +125°C, but the maximum ambient temperature range for reliable operation depends on the specific application and the thermal management design. Renesas recommends following the thermal design guidelines in the datasheet and application notes to ensure reliable operation over the desired temperature range.
The ISL78171ARZ-T has built-in overcurrent protection and short-circuit protection features, but additional external components may be required to implement these features in a specific application. Renesas provides guidance on implementing overcurrent protection and short-circuit protection in the datasheet and application notes.
The recommended startup sequence for the ISL78171ARZ-T involves applying the input voltage, followed by the enable signal, and then the output voltage. This sequence helps to ensure that the device starts up correctly and avoids any potential issues with voltage sequencing.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL78171ARZ-T Overview

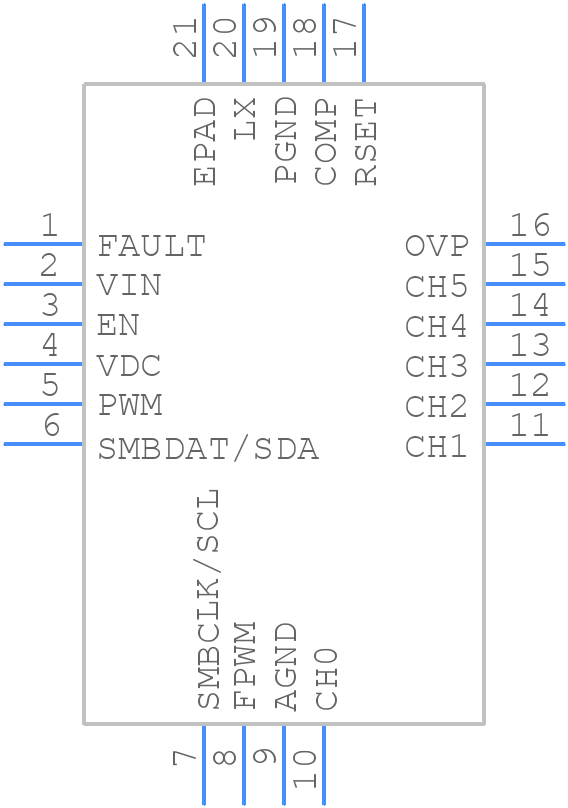

Use the download button to access the ISL78171ARZ-T schematic symbol, PCB footprint, and 3D model.
