Description:The ISL78229 is an automotive grade (AEC-Q100 Grade 1), 2-phase 55V synchronous boost controller that simplifies the design of high power boost applications. It integrates strong half-bridge drivers, an analog/digital tracking input, comprehensive protection functions, and a PMBus interface for added control and telemetry. The ISL78229 enables a simple, modular design for systems requiring power and thermal scalability. It offers peak-current mode control for fast line response and simple compensation. Its
Renesas provides a recommended PCB layout in the ISL78229ARZ-T evaluation board user manual, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
Renesas provides a configuration tool, the ISL78229ARZ-T Configurator, which allows users to easily configure the device for their specific application, including setting output voltage, switching frequency, and other parameters.
Renesas recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output, and a maximum ESR of 10mΩ for the output capacitor. The specific capacitor values and types may vary depending on the application and operating conditions.
Renesas provides a troubleshooting guide in the ISL78229ARZ-T datasheet, which includes steps to identify and resolve common issues, such as checking for proper PCB layout, component selection, and configuration settings.
Renesas recommends using a combination of thermal management techniques, including heat sinks, thermal interfaces, and airflow management, to ensure the device operates within its recommended temperature range. The specific thermal management strategy will depend on the application and operating conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL78229ARZ-T Overview

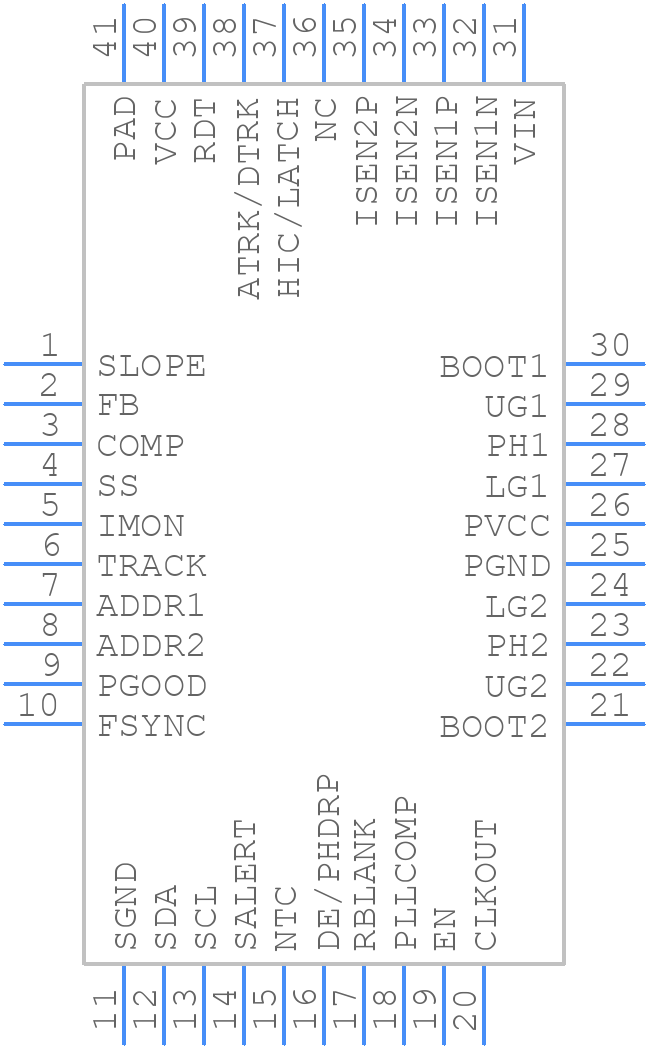

Use the download button to access the ISL78229ARZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL78,
or try a keyword search, such as Switching Regulator or Controllers
