ISL78233ARZ-T - Renesas Electronics

Description: The ISL78233 and ISL78234 are highly efficient, monolithic, synchronous step-down DC/DC converters that can deliver 3A (ISL78233), or 4A (ISL78234) of continuous output current from a 2. 7V to 5. 5V input supply. The devices use current mode control architecture to deliver a very low duty cycle operation at high frequency with fast transient response and excellent loop stability. The ISL78233 and ISL78234 integrate a very low ON‑resistance P‑channel (35mΩ) high-side FET and N-channel (11mΩ) low‑side FET to

Download ISL78233ARZ-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

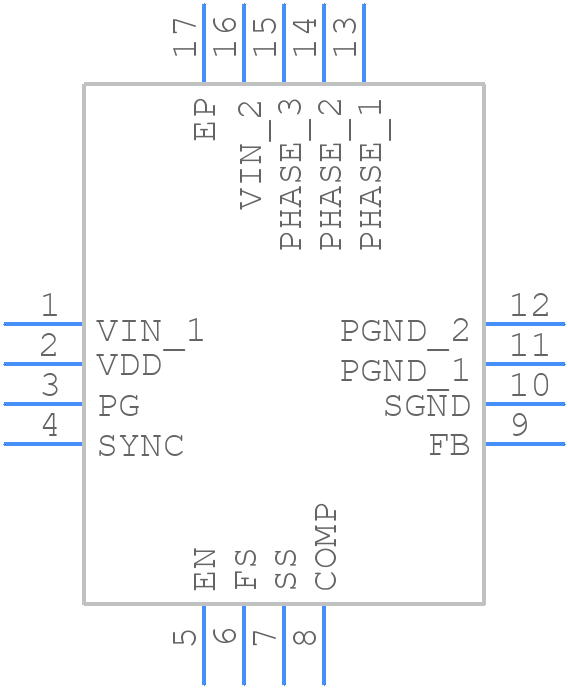

ISL78233ARZ-T - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL78233ARZ-T - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16 Ld 3x3x0.75mm TQFN
click to zoom
3D Models
ISL78233ARZ-T - Renesas Electronics - 3D model - Quad Flat No-Lead - 16 Ld 3x3x0.75mm TQFN
click to zoom

ISL78233ARZ-T Details

  • Manufacturer Part Number:

    ISL78233ARZ-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TQFN

  • Package Description:

    TQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    L16.3X3D

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    8

  • Additional Feature:

    PFM TECHNIQUE ALSO USED

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    6.6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2350 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ISL78233ARZ-T Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout in the ISL78233ARZ-T evaluation board user manual, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • Renesas provides a configuration tool, the ISL78233ARZ-T Configurator, which allows users to easily configure the device for their specific application, including setting output voltage, switching frequency, and other parameters.
  • Renesas recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output, and a maximum capacitance of 100uF for the output. The specific capacitor values and types may vary depending on the application and operating conditions.
  • Renesas provides a troubleshooting guide in the ISL78233ARZ-T datasheet, which includes steps to identify and resolve common issues, such as checking for proper PCB layout, component selection, and configuration settings.
  • Renesas recommends using a combination of thermal management techniques, including heat sinks, thermal interfaces, and airflow management, to ensure the device operates within its recommended temperature range. The specific thermal management strategy will depend on the application and operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISL78233ARZ-T Overview

Use the download button to access the ISL78233ARZ-T schematic symbol, PCB footprint, and 3D model.
