Description:The ISL78233 and ISL78234 are highly efficient, monolithic, synchronous step-down DC/DC converters that can deliver 3A (ISL78233), or 4A (ISL78234) of continuous output current from a 2. 7V to 5. 5V input supply. The devices use current mode control architecture to deliver a very low duty cycle operation at high frequency with fast transient response and excellent loop stability. The ISL78233 and ISL78234 integrate a very low ON‑resistance P‑channel (35mΩ) high-side FET and N-channel (11mΩ) low‑side FET to
Renesas provides a recommended PCB layout guide in their application note AN1965, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
Renesas provides an inductor selection guide in their application note AN1964, which includes guidelines for selecting the right inductor based on the device's operating frequency, output voltage, and current requirements.
Renesas recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF for the input capacitor, depending on the input voltage and operating frequency. The capacitor should be placed as close as possible to the VIN pin to minimize noise and ensure stable operation.
Renesas provides a configuration guide in their application note AN1963, which includes guidelines for configuring the device's operating mode, output voltage, and current limit based on the specific application requirements.
The ISL78234ARZ has a thermal pad that must be connected to a thermal plane on the PCB to ensure proper heat dissipation. The device's thermal resistance (θJA) is 30°C/W, and the maximum junction temperature is 150°C. Engineers should ensure that the device is properly cooled to prevent overheating and ensure reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL78234ARZ Overview

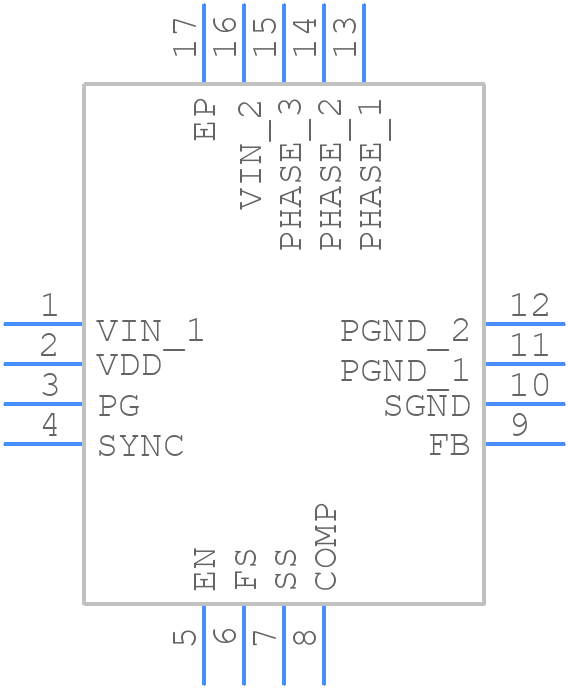

Use the download button to access the ISL78234ARZ schematic symbol, PCB footprint, and 3D model.
