Description:The ISL78236 is a dual output, 3A/3A, integrated FET buck regulator for point-of-load power applications. The supply voltage range is from 2. 8V to 6V, allowing for the use of a single Li+ cell, three NiMH cells, or a regulated 3V/5V bus input. It is optimized for regulating output voltages down to 1. 2V. Each channel provides an output current up to 3A, which can be combined to form a single 6A output in current sharing mode. The two channels operate 180° out of phase to reduce input RMS current and EMI. T
Renesas provides a recommended PCB layout in the ISL78236ARZ-T7A evaluation board user manual, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
The selection of input and output capacitors depends on the specific requirements of your application, including the input voltage range, output voltage, and desired ripple and noise performance. Renesas provides guidance on capacitor selection in the datasheet and application notes, and recommends using low-ESR capacitors with a voltage rating that exceeds the maximum input voltage.
While the datasheet specifies an operating temperature range of -40°C to +125°C, the maximum ambient temperature range for reliable operation depends on the specific application and cooling conditions. As a general guideline, Renesas recommends keeping the junction temperature below 125°C to ensure reliable operation and minimize the risk of thermal shutdown.
The ISL78236ARZ-T7A has built-in overcurrent protection and short-circuit protection features, which can be enabled through external resistors and capacitors. Renesas provides guidance on implementing these features in the datasheet and application notes, and recommends using a combination of current sensing and voltage monitoring to detect and respond to fault conditions.
Renesas recommends a specific startup sequence to ensure reliable operation and minimize the risk of damage or malfunction. The recommended sequence involves applying the input voltage, followed by the enable signal, and then the output voltage. The datasheet and application notes provide more detailed guidance on the startup sequence and timing requirements.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL78236ARZ-T7A Overview

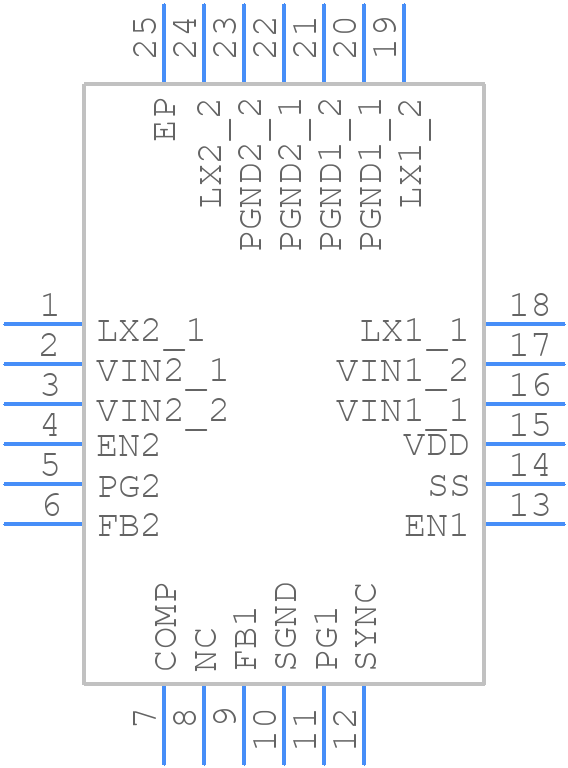

Use the download button to access the ISL78236ARZ-T7A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL78,
or try a keyword search, such as Switching Regulator or Controllers
