Description:The ISL78236 is a dual output, 3A/3A, integrated FET buck regulator for point-of-load power applications. The supply voltage range is from 2. 8V to 6V, allowing for the use of a single Li+ cell, three NiMH cells, or a regulated 3V/5V bus input. It is optimized for regulating output voltages down to 1. 2V. Each channel provides an output current up to 3A, which can be combined to form a single 6A output in current sharing mode. The two channels operate 180° out of phase to reduce input RMS current and EMI. T
Renesas provides a recommended PCB layout in the ISL78236ARZ evaluation board user manual, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal heat dissipation.
Renesas provides a compensation network design tool on their website, which can help engineers optimize the compensation network for their specific application. Additionally, the datasheet provides guidelines for selecting the compensation components based on the output capacitor and inductor values.
While the datasheet specifies the recommended input voltage range, it does not explicitly state the maximum allowed input voltage ripple. According to Renesas' application notes, the maximum allowed input voltage ripple is typically around 10% of the nominal input voltage, but this can vary depending on the specific application and operating conditions.
The ISL78236ARZ is rated for operation up to 125°C, but the datasheet does not provide explicit guidance on high-temperature operation. According to Renesas, the device can be used in high-temperature environments, but the engineer should carefully consider the thermal management and derate the device's performance accordingly.
Renesas provides a troubleshooting guide in the ISL78236ARZ application note, which covers common issues such as oscillations, instability, and noise. The guide provides step-by-step procedures for identifying and resolving these issues, including checking the compensation network, output capacitor, and input voltage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL78236ARZ Overview

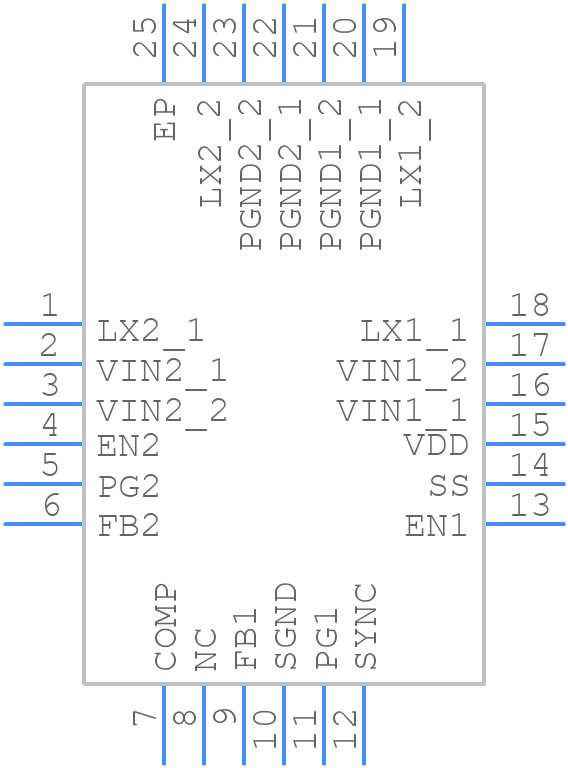

Use the download button to access the ISL78236ARZ schematic symbol, PCB footprint, and 3D model.
