Description:The ISL78263 offers synchronous boost and buck controllers. The boost controller operates either as an independent channel or as a pre-boost function that supplies the buck controller. The low-IQ buck controller uses only 6µA quiescent current, allowing it to support low-power, always-on operation. Both controllers support wide duty-cycles for switching frequencies from 200kHz to 2.2MHz. Both devices can be synchronized to an external clock and offer programmable spread spectrum clocking to mitigate EMI.In
Renesas provides a recommended PCB layout in the ISL78263 evaluation board user manual, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
The selection of input and output capacitors depends on the specific requirements of the application, including the input voltage range, output voltage, and ripple current. Renesas provides guidelines for capacitor selection in the datasheet and application notes, and recommends using low-ESR capacitors with a voltage rating of at least 1.5 times the maximum input voltage.
While the datasheet specifies an operating temperature range of -40°C to +125°C, the maximum ambient temperature range for reliable operation depends on the specific application and the thermal design of the system. As a general guideline, Renesas recommends keeping the ambient temperature below 85°C to ensure reliable operation and minimize the risk of thermal shutdown.
The ISL78263ARZ-T7A has built-in overcurrent protection and short-circuit protection features. To implement these features, engineers can use the OCSET pin to set the overcurrent threshold and the EN pin to enable or disable the device. Renesas provides more detailed information on implementing these features in the datasheet and application notes.
Renesas recommends a specific startup sequence to ensure proper operation of the ISL78263ARZ-T7A. The sequence involves applying the input voltage, followed by the enable signal, and then the output voltage. This sequence helps to prevent unwanted startup behavior and ensures reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL78263ARZ-T7A Overview

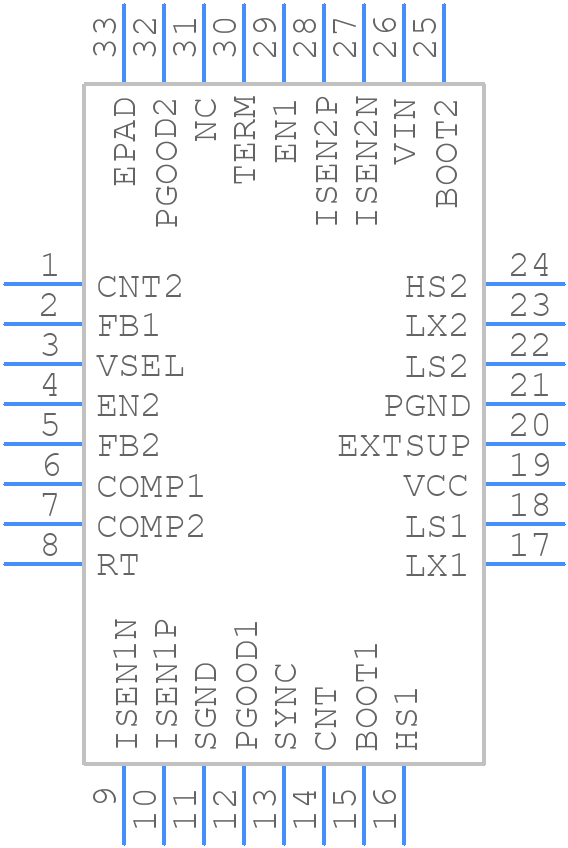

Use the download button to access the ISL78263ARZ-T7A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL78,
or try a keyword search, such as Switching Regulator or Controllers
