ISL78301FVEBZ - Renesas Electronics

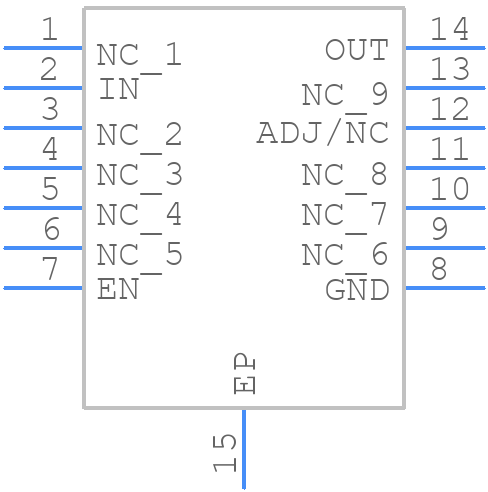

ISL78301FVEBZ Details

• Manufacturer Part Number:

  ISL78301FVEBZ

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  TSSOP-EP

• Package Description:

  HTSSOP-14

• Pin Count:

  14

• Manufacturer Package Code:

  M14.173B

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  18 Weeks

• Date Of Intro:

  2017-10-25

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  6

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  0.46 V

• Dropout Voltage1-Nom:

  0.295 V

• Input Voltage Absolute-Max:

  45 V

• Input Voltage-Max:

  40 V

• Input Voltage-Min:

  5.96 V

• JESD-30 Code:

  R-PDSO-G14

• Length:

  5 mm

• Line Regulation-Max:

  0.0075%

• Load Regulation-Max:

  0.03%

• Moisture Sensitivity Level:

  2

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  14

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Output Current1-Max:

  0.15 A

• Output Voltage1-Max:

  5.05 V

• Output Voltage1-Min:

  4.95 V

• Output Voltage1-Nom:

  5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTSSOP

• Package Equivalence Code:

  TSSOP14,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Regulator Type:

  FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  1.2 mm

• Surface Mount:

  YES

• Terminal Finish:

  Pure Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Voltage Tolerance-Max:

  1%

• Width:

  4.4 mm
