ISL78302ARFWZ - Renesas Electronics

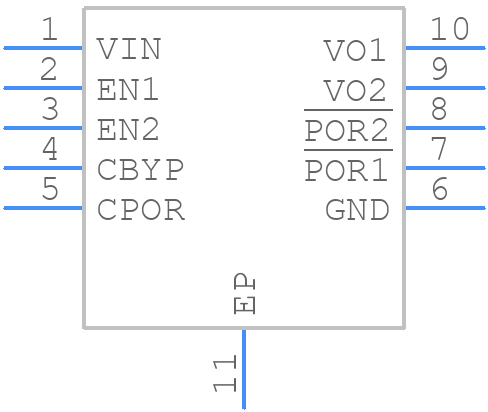

ISL78302ARFWZ Details

• Manufacturer Part Number:

  ISL78302ARFWZ

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  DFN

• Package Description:

  DFN-10

• Pin Count:

  10

• Manufacturer Package Code:

  L10.3X3C

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  18 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  8

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  0.25 V

• Dropout Voltage1-Nom:

  0.3 V

• Dropout Voltage2-Max:

  0.25 V

• Input Voltage-Max:

  6.5 V

• Input Voltage-Min:

  3 V

• JESD-30 Code:

  S-PDSO-N10

• JESD-609 Code:

  e3

• Length:

  3 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Outputs:

  2

• Number of Terminals:

  10

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Output Current1-Max:

  0.3 A

• Output Current2-Max:

  0.3 A

• Output Voltage1-Max:

  2.545 V

• Output Voltage1-Min:

  2.455 V

• Output Voltage1-Nom:

  2.5 V

• Output Voltage2-Max:

  1.2216 V

• Output Voltage2-Min:

  1.1784 V

• Output Voltage2-Nom:

  1.2 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC10,.11,20

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TUBE

• Peak Reflow Temperature (Cel):

  260

• Regulator Type:

  FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  0.9 mm

• Surface Mount:

  YES

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3 mm
