Description:The ISL78322 is a high-efficiency, dual synchronous step-down DC/DC regulator that can deliver up to 2A/1. 7A continuous output current per channel. The channels are 180° out-of-phase for input RMS current and EMI reduction. The supply voltage range of 2. 8V to 5. 5V allows for the use of a single Li+ cell, three NiMH cells or a regulated 5V input. The current mode control architecture enables very low duty cycle operation at high frequency with fast transient response and excellent loop stability. The ISL7
The recommended PCB layout for optimal performance involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input and output voltages to reduce noise and improve stability.
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, make sure to decouple the input and output pins with suitable capacitors, and use a low-ESR output capacitor to reduce ringing and oscillation. Also, ensure that the input voltage is within the recommended range and the output current is within the specified limits.
The maximum ambient temperature for reliable operation of the ISL78322ARZ-T is 105°C. However, it's recommended to derate the device's performance and consider thermal management techniques, such as heat sinking or airflow, to ensure reliable operation at high temperatures.
While it's possible to use a different inductor value or type, it's not recommended as it may affect the device's performance and stability. The recommended inductor value and type are specified in the datasheet to ensure optimal performance and efficiency. Using a different inductor may require re-designing the entire circuit and re-tuning the component values.
To troubleshoot issues with the device, start by verifying the input voltage, output current, and component values. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Use an oscilloscope to measure the output voltage and current waveforms, and look for any signs of ringing or oscillation. Consult the datasheet and application notes for guidance on troubleshooting and debugging techniques.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL78322ARZ-T Overview

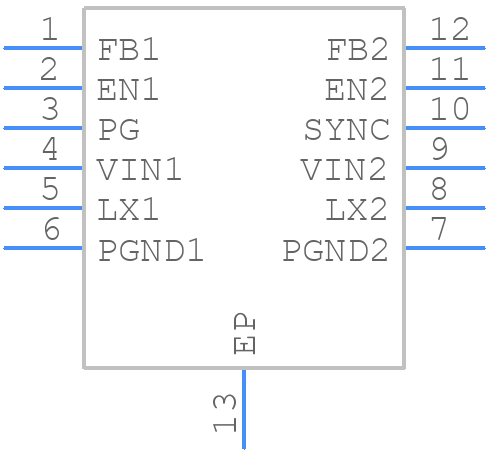

Use the download button to access the ISL78322ARZ-T schematic symbol, PCB footprint, and 3D model.
