Description:The ISL78322 is a high-efficiency, dual synchronous step-down DC/DC regulator that can deliver up to 2A/1. 7A continuous output current per channel. The channels are 180° out-of-phase for input RMS current and EMI reduction. The supply voltage range of 2. 8V to 5. 5V allows for the use of a single Li+ cell, three NiMH cells or a regulated 5V input. The current mode control architecture enables very low duty cycle operation at high frequency with fast transient response and excellent loop stability. The ISL7
Renesas provides a recommended PCB layout guide in their application note AN1995, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The selection of the output capacitor depends on the output voltage, output current, and ripple requirements. Renesas recommends using a low-ESR capacitor with a value between 10uF to 22uF, and a voltage rating of at least 2x the output voltage. Additionally, the capacitor should be placed as close as possible to the output pins of the ISL78322ARZ.
The ISL78322ARZ is rated for operation up to 125°C ambient temperature, but it's recommended to derate the output current and voltage to ensure reliable operation at high temperatures. Consult the datasheet and thermal management guidelines for more information.
The ISL78322ARZ has built-in OCP and SCP features. To implement these features, connect the OCP pin to a resistor divider network that sets the current limit, and connect the SCP pin to a capacitor that sets the short-circuit detection time. Consult the datasheet and application notes for more information on implementation and component selection.
The input capacitor value and type depend on the input voltage, input current, and noise requirements. Renesas recommends using a ceramic or film capacitor with a value between 1uF to 10uF, and a voltage rating of at least 2x the input voltage. The capacitor should be placed as close as possible to the input pins of the ISL78322ARZ.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL78322ARZ Overview

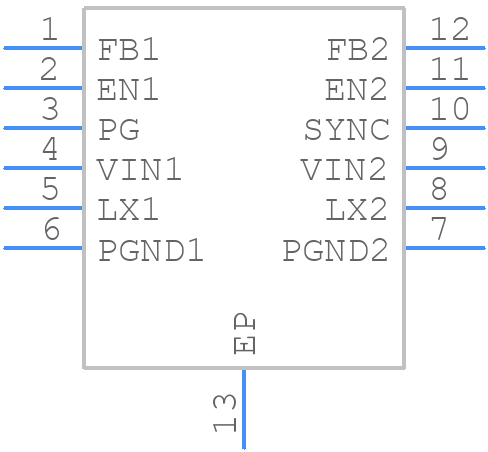

Use the download button to access the ISL78322ARZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL78,
or try a keyword search, such as Switching Regulator or Controllers
