ISL80015AIRZ-T - Renesas Electronics

Description: The ISL80020, ISL80020A, ISL80015 and ISL80015A are highly efficient, monolithic, synchronous step-down DC/DC converters that can deliver up to 2A of continuous output current from a 2. 7V to 5. 5V input supply. They use peak current mode control architecture to allow very low duty cycle operation. They operate at either 1MHz or 2MHz switching frequency, thereby providing superior transient response and allowing for the use of small inductors. They have excellent stability. The ISL80020, ISL80020A, ISL80015

Download ISL80015AIRZ-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

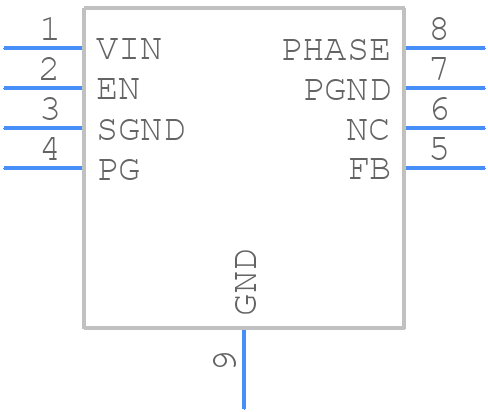

Symbol
ISL80015AIRZ-T - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL80015AIRZ-T - Renesas Electronics PCB footprint - Small Outline No-lead - Small Outline No-lead - L8.2x2C-
click to zoom
3D Models
ISL80015AIRZ-T - Renesas Electronics - 3D model - Small Outline No-lead - L8.2x2C-
click to zoom

ISL80015AIRZ-T Details

  • Manufacturer Part Number:

    ISL80015AIRZ-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TDFN

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    L8.2X2C

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Date Of Intro:

    2017-10-20

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.9 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2360 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

ISL80015AIRZ-T Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout in the ISL80015 evaluation board user manual, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
  • The ISL80015 has a power-on reset (POR) circuit that ensures the device is properly reset during power-up. Additionally, the device has a configuration pin (EN) that can be used to enable or disable the device. It is recommended to follow the power-up sequence and configuration guidelines outlined in the datasheet to ensure proper startup.
  • The ISL80015's LDO output can drive a maximum capacitive load of 10uF. Exceeding this limit may cause stability issues or oscillations. It is recommended to follow the output capacitance guidelines outlined in the datasheet and to use a capacitor with a low equivalent series resistance (ESR) to ensure stability.
  • The ISL80015 has built-in OVP and UVP circuits that can be configured using external resistors. It is recommended to follow the guidelines outlined in the datasheet to set the OVP and UVP thresholds and to ensure that the device is properly protected against voltage faults.
  • Renesas recommends using a high-quality, low-ESR ceramic capacitor with a value of 1uF to 10uF as the input capacitor. This helps to filter out noise and ensure stable operation of the device.
