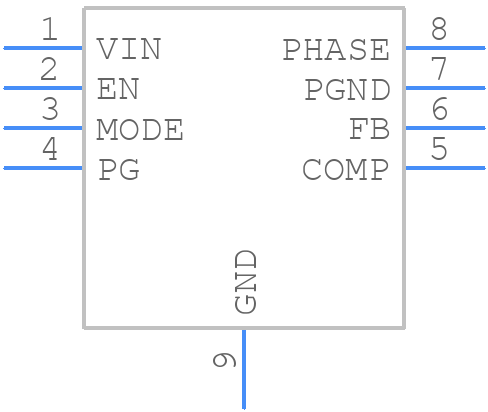

ISL80019IRZ-T7A - Renesas Electronics

ISL80019IRZ-T7A Details

• Manufacturer Part Number:

  ISL80019IRZ-T7A

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  TDFN

• Package Description:

  TDFN-8

• Pin Count:

  8

• Manufacturer Package Code:

  L8.2X2C

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  4 Weeks

• Date Of Intro:

  2017-10-20

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  5.5 V

• Input Voltage-Min:

  2.7 V

• Input Voltage-Nom:

  3.6 V

• JESD-30 Code:

  S-PDSO-N8

• JESD-609 Code:

  e3

• Length:

  2 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  2.9 A

• Output Voltage-Max:

  5.5 V

• Output Voltage-Min:

  0.6 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  0.8 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  1150 kHz

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  2 mm
