Description:The ISL8002, ISL8002A, ISL80019 and ISL80019A are highly efficient, monolithic, synchronous step-down DC/DC converters that can deliver up to 2A of continuous output current from a 2. 7V to 5. 5V input supply. They use peak current mode control architecture to allow very low duty cycle operation. They operate at either 1MHz or 2MHz switching frequency, thereby providing superior transient response and allowing for the use of small inductors. They also have excellent stability and provide both internal and e
Renesas provides a recommended PCB layout in the ISL8002IRZ-T7A evaluation board user manual, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
To ensure the device operates within the specified junction temperature range, it's essential to provide adequate heat sinking, use a thermal interface material (TIM) between the device and heat sink, and follow the recommended PCB layout guidelines. Additionally, monitor the device's thermal performance and adjust the system design as needed to prevent overheating.
Exceeding the maximum junction temperature can lead to reduced device reliability, decreased performance, and potentially even device failure. Prolonged operation above the maximum junction temperature can cause permanent damage to the device, resulting in a shorter lifespan or complete failure.
To calculate the power dissipation of the ISL8002IRZ-T7A, you'll need to consider the input voltage, output voltage, output current, and efficiency of the device. Use the equations provided in the datasheet to calculate the power dissipation, and then use thermal resistance and junction temperature calculations to ensure the device operates within the specified temperature range.
The recommended input and output capacitors for the ISL8002IRZ-T7A are specified in the datasheet and application notes. In general, Renesas recommends using low-ESR capacitors with a voltage rating that meets or exceeds the maximum input and output voltages. The specific capacitor values and types may vary depending on the application requirements and operating conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL8002IRZ-T7A Overview

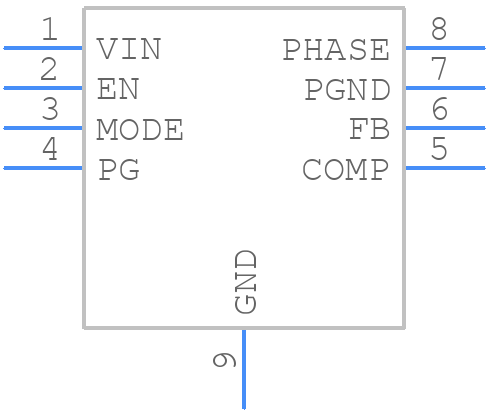

Use the download button to access the ISL8002IRZ-T7A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL80,
or try a keyword search, such as Switching Regulator or Controllers
