Description:The ISL80030, ISL80030A, ISL80031, and ISL80031A are highly efficient, monolithic, synchronous step-down DC/DC converters that can deliver up to 3A of continuous output current from a 2. 7V to 5. 5V input supply. They use peak current mode control architecture to allow very low duty cycle operation. These devices operate at either a 1MHz or 2MHz switching frequency, thereby providing superior transient response and allowing for the use of small inductors. They also have excellent stability. The ISL80030, IS
Renesas provides a recommended PCB layout in the ISL80031 evaluation board user manual, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
The ISL80031 has a power-on reset (POR) circuit that ensures the device is properly powered up and configured during startup. The POR circuit monitors the input voltage and releases the reset signal when the input voltage reaches the minimum operating voltage. Additionally, the device has a programmable soft-start feature that allows the output voltage to ramp up slowly to prevent inrush currents and ensure a smooth startup.
The ISL80031 is capable of delivering up to 3A of output current. However, the maximum output current capability depends on the input voltage, output voltage, and ambient temperature. Refer to the datasheet for the output current derating curves to determine the maximum output current capability for a specific application.
The ISL80031 has built-in overcurrent protection (OCP) and overtemperature protection (OTP) features. The OCP feature limits the output current to prevent damage from excessive current, while the OTP feature shuts down the device if the junction temperature exceeds a certain threshold. Additionally, the device has a thermal shutdown feature that turns off the device if the junction temperature exceeds 150°C.
Yes, the ISL80031 is qualified for automotive and high-reliability applications. The device is AEC-Q100 qualified and meets the requirements for automotive applications. Additionally, the device is manufactured using a robust process that ensures high reliability and low defect rates.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL80031AFRZ-T Overview

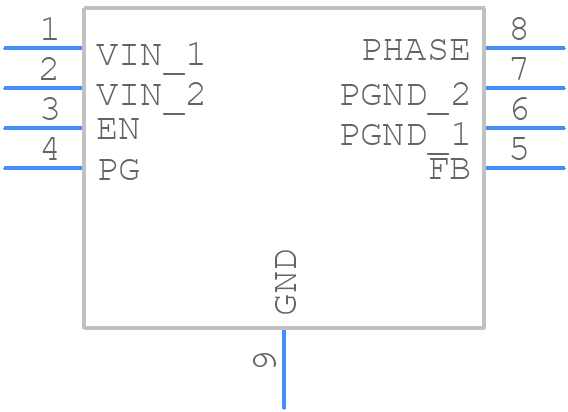

Use the download button to access the ISL80031AFRZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL80,
or try a keyword search, such as Switching Regulator or Controllers
