Description:The ISL80030, ISL80030A, ISL80031, and ISL80031A are highly efficient, monolithic, synchronous step-down DC/DC converters that can deliver up to 3A of continuous output current from a 2. 7V to 5. 5V input supply. They use peak current mode control architecture to allow very low duty cycle operation. These devices operate at either a 1MHz or 2MHz switching frequency, thereby providing superior transient response and allowing for the use of small inductors. They also have excellent stability. The ISL80030, IS
Renesas provides a recommended PCB layout in the ISL80031FRZ-T evaluation board user manual, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
To ensure the device operates within the specified junction temperature range, it's essential to provide adequate heat sinking, use a thermal interface material (TIM) between the device and heat sink, and follow the recommended PCB layout guidelines. Additionally, monitor the device's thermal performance and adjust the system design as needed.
Renesas recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF for the input capacitor (CIN). This helps to filter out high-frequency noise and ensure stable operation. The exact value may vary depending on the specific application and input voltage ripple requirements.
To troubleshoot issues with the enable pin (EN), verify that the pin is properly connected to a logic-level signal source, and ensure that the voltage level meets the specified requirements (typically 1.2V to 5.5V). Also, check for any noise or ringing on the EN pin, and consider adding a pull-up or pull-down resistor to ensure a clean signal.
Renesas recommends using a low-ESR ceramic capacitor with a value of 10uF to 47uF for the output capacitor (COUT). This helps to filter out high-frequency noise and ensure stable output voltage regulation. The exact value may vary depending on the specific application and output voltage ripple requirements.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL80031FRZ-T Overview

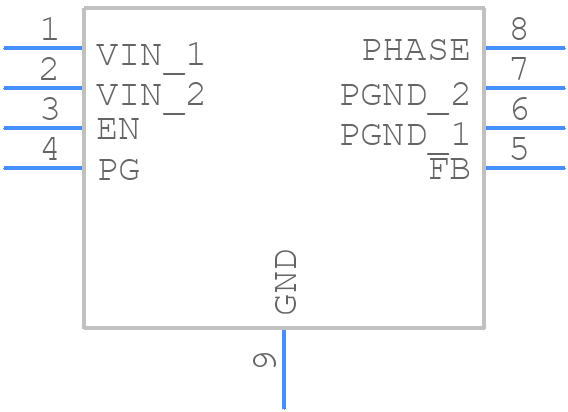

Use the download button to access the ISL80031FRZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL80,
or try a keyword search, such as Switching Regulator or Controllers
