ISL80111IRAJZ - Renesas Electronics

Description: The ISL80111, ISL80112, and ISL80113 are ultra low dropout LDOs providing the optimum balance between performance, size and power consumption in size constrained designs for data communication, computing, storage and medical applications. These LDOs are specified for 1A, 2A and 3A of output current and are optimized for low voltage conversions. Operating with a VIN of 1V to 3. 6V and with a legacy 2. 9V to 5. 5V on the BIAS, the VOUT is adjustable from 0. 8V to 3. 3V. With a VIN PSRR greater than 40dB at 10

Download ISL80111IRAJZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

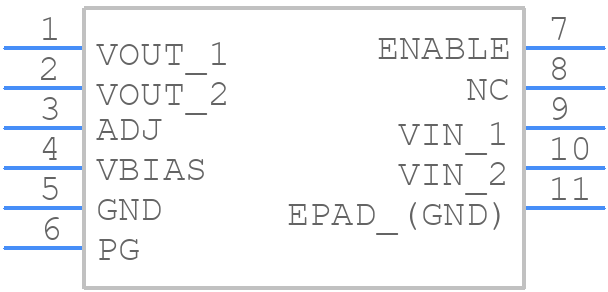

Symbol
ISL80111IRAJZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL80111IRAJZ - Renesas Electronics PCB footprint - Other - Other - L10.3x3
click to zoom
3D Models
ISL80111IRAJZ - Renesas Electronics - 3D model - Other - L10.3x3
click to zoom

ISL80111IRAJZ Details

  • Manufacturer Part Number:

    ISL80111IRAJZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    L10.3X3

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2017-10-20

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.09 V

  • Dropout Voltage1-Nom:

    0.027 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max (%/V):

    0.2571

  • Load Regulation-Max(%):

    0.4%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1 A

  • Output Voltage1-Max:

    3.3 V

  • Output Voltage1-Min:

    0.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ISL80111IRAJZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ISL80111IRAJZ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure the stability of the output voltage, it's essential to choose the correct output capacitor value and type. A minimum capacitance of 10uF is recommended, and the capacitor should have a low ESR (Equivalent Series Resistance) to minimize voltage ripple. Additionally, the output voltage can be stabilized by adding a small ceramic capacitor (e.g., 100nF) in parallel with the output capacitor.
  • The ISL80111IRAJZ can handle a maximum input voltage of 6.5V. Exceeding this voltage may damage the device. It's essential to ensure that the input voltage remains within the recommended operating range to ensure reliable operation.
  • The power dissipation of the ISL80111IRAJZ can be calculated using the following formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Pd is the power dissipation, Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current. The calculated power dissipation should be within the recommended operating range to ensure reliable operation.
  • The ISL80111IRAJZ has a thermal derating of 13.3mW/°C above 25°C. This means that the device's power dissipation should be reduced by 13.3mW for every degree Celsius above 25°C to ensure reliable operation.
