ISL80136IBEAJZ - Renesas Electronics

Description: The ISL80136 is a high voltage, low quiescent current linear regulator ideally suited for “always-on” and “keep alive” applications. The ISL80136 operates from an input voltage of +6V to +40V under normal operating conditions, consuming only 18µA of quiescent current at no load. The ISL80136 offers adjustable output voltages from 2.5V to 12V. It features an EN pin that can be used to put the device into a low-quiescent current shutdown mode where it draws only 1.8µA of supply current. The device features ov

Download ISL80136IBEAJZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

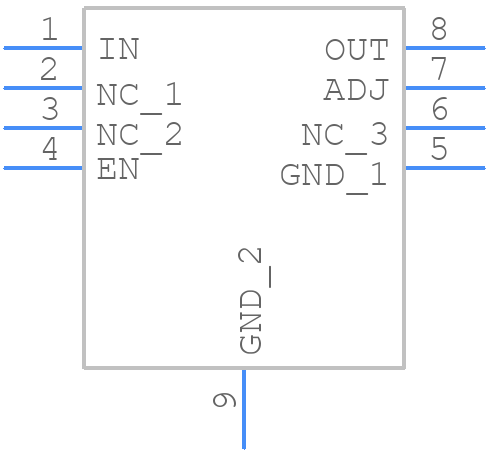

ISL80136IBEAJZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

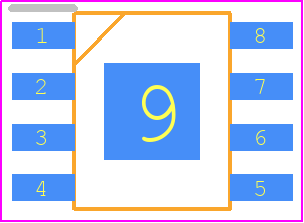

ISL80136IBEAJZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 8 Ld EPSOIC
click to zoom
3D Models
ISL80136IBEAJZ - Renesas Electronics - 3D model - Small Outline Packages - 8 Ld EPSOIC
click to zoom

ISL80136IBEAJZ Details

  • Manufacturer Part Number:

    ISL80136IBEAJZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOICN-EP

  • Package Description:

    EPSOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    M8.15B

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-10-20

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.35 V

  • Dropout Voltage1-Nom:

    0.12 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.89 mm

  • Line Regulation-Max (%/V):

    0.003

  • Load Regulation-Max(%):

    0.5%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.05 A

  • Output Voltage1-Max:

    12 V

  • Output Voltage1-Min:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.7 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ISL80136IBEAJZ Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in the ISL80136 evaluation board user manual, which includes guidelines for component placement, thermal management, and routing to minimize noise and ensure optimal performance.
  • The selection of the output capacitor depends on the output voltage, output current, and ripple requirements. Renesas recommends using a low-ESR capacitor with a value between 10uF to 22uF for most applications. A higher value capacitor may be required for high-current or low-ripple applications.
  • The ISL80136IBEAJZ is rated for operation up to 125°C ambient temperature, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management and heat sinking to maintain a safe operating temperature.
  • Yes, the ISL80136IBEAJZ is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, it's essential to follow the recommended design and manufacturing guidelines to ensure the device meets the required reliability and quality standards.
  • Renesas provides a troubleshooting guide in the ISL80136 datasheet, which includes steps to identify and resolve common issues like output voltage instability or oscillation. This guide covers topics like component selection, PCB layout, and measurement techniques.
