Description:ISL8033 is a dual integrated power controller rated for 3A per channel with a 1MHz step-down regulator that is ideal for any low power low-voltage applications. The ISL8033A offers 2. 5MHz operation for smaller more compacted design. The channels are 180° out-of-phase for input RMS current and EMI reduction. It is optimized for generating low output voltages down to 0. 8V each. The supply voltage range is from 2. 85V to 6V, allowing for the use of a single Li+ cell, three NiMH cells or a regulated 5V input.
The ISL8033AIRZ can handle input voltages up to 15V, but it's recommended to operate within the specified input voltage range of 2.7V to 12V for optimal performance and reliability.
To ensure the stability of the output voltage, it's essential to follow the recommended layout guidelines, use a suitable output capacitor, and ensure that the input voltage is within the specified range. Additionally, the output voltage can be adjusted using the FB pin, and the output voltage tolerance can be improved by using a voltage reference IC.
The ISL8033AIRZ can provide a maximum output current of 3A, but the actual output current may be limited by the input voltage, output voltage, and thermal considerations. It's essential to check the datasheet for the recommended operating conditions and thermal derating curves.
To protect the ISL8033AIRZ from overheating, ensure that the device is operated within the recommended temperature range, provide adequate heat sinking, and follow the recommended layout guidelines to minimize thermal resistance. Additionally, consider using thermal monitoring and shutdown features to prevent overheating.
Yes, the ISL8033AIRZ is suitable for high-reliability applications, such as aerospace, automotive, and industrial control systems. However, it's essential to follow the recommended design guidelines, use suitable components, and perform thorough testing and validation to ensure the required level of reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL8033AIRZ Overview

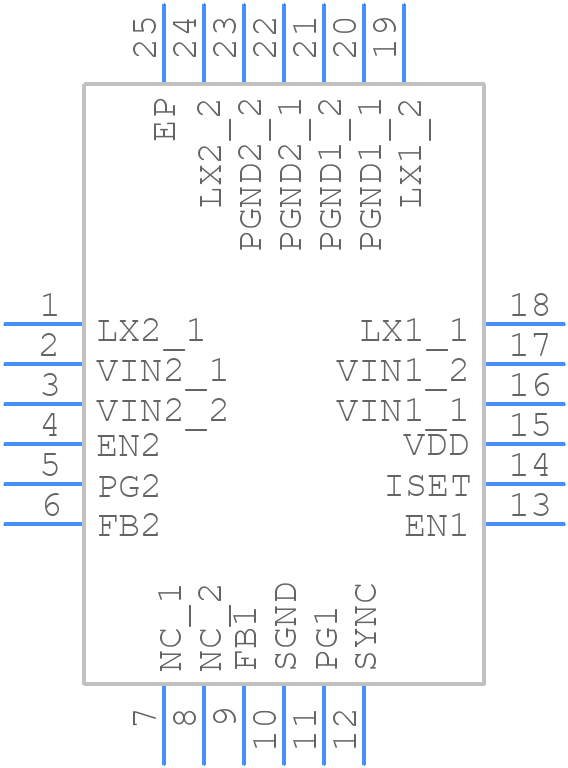

Use the download button to access the ISL8033AIRZ schematic symbol, PCB footprint, and 3D model.
