Description:The ISL80410 is a high voltage, adjustable VOUT, low quiescent current linear regulator ideally suited for “always-on” and “keep alive” applications. The ISL80410 operates from an input voltage of +6V to +40V under normal operating conditions and consumes only 18µA of quiescent current at no load. The ISL80410 features an EN pin that can be used to put the device into a low-quiescent current shutdown mode in which it draws only 2µA of supply current. The device features over-temperature shutdown and current
Renesas provides a recommended PCB layout in the ISL80410 evaluation board user manual, which includes guidelines for component placement, thermal management, and routing. Following this layout can help ensure optimal performance and minimize noise and EMI issues.
The selection of input and output capacitors depends on the specific requirements of your application, including the input voltage range, output voltage, and desired ripple and noise performance. Renesas provides guidance on capacitor selection in the datasheet and application notes, and engineers can also consult with capacitor manufacturers for specific recommendations.
While the datasheet specifies an operating temperature range of -40°C to +125°C, the maximum ambient temperature range for reliable operation may be lower depending on the specific application and thermal management. Engineers should consider factors such as airflow, heat sinking, and thermal resistance when determining the maximum ambient temperature range for their design.
To ensure EMC in your design, follow best practices for PCB layout, component selection, and shielding. Renesas provides guidance on EMC considerations in the datasheet and application notes, and engineers can also consult with EMC experts and conduct testing to ensure compliance with relevant standards.
Thermal management is critical for reliable operation of the ISL80410. Key considerations include heat sinking, thermal interface materials, and airflow. Engineers should also consider the thermal resistance of the device and the PCB, as well as the maximum junction temperature to ensure reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL80410IBEZ Overview

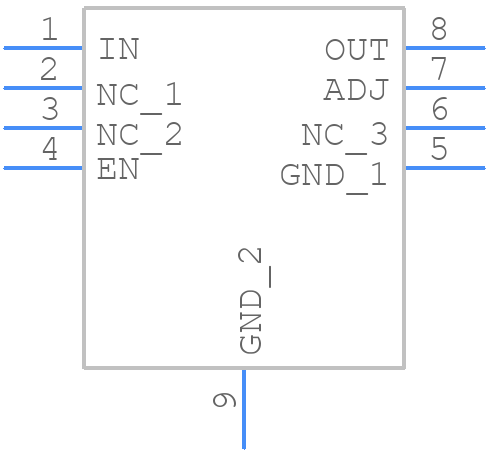

Use the download button to access the ISL80410IBEZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL80,
or try a keyword search, such as Linear Regulator ICs
