Description:The ISL8105, ISL8105A is a simple single-phase PWM controller for a synchronous buck converter. It operates from +5V or +12V bias supply voltage. With integrated linear regulator, boot diode, and N-Channel MOSFET gate drivers, the ISL8105, ISL8105A reduces external component count and board space requirements. These make the IC suitable for a wide range of applications. Utilizing voltage-mode control, the output voltage can be precisely regulated to as low as 0. 6V. The 0. 6V internal reference features a m
Renesas provides a recommended PCB layout in the ISL8105AIBZ evaluation board user manual, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
To ensure reliable start-up and shutdown, it is recommended to follow the power-up and power-down sequencing guidelines in the datasheet, and to use a soft-start circuit to limit the inrush current during power-up. Additionally, a voltage supervisor or reset IC can be used to monitor the input voltage and ensure that the device is properly reset during power-up and power-down.
While the datasheet specifies the maximum input voltage rating, it does not explicitly state the allowed input voltage ripple. As a general guideline, it is recommended to keep the input voltage ripple below 10% of the nominal input voltage to ensure reliable operation and minimize the risk of overvoltage or undervoltage faults.
The ISL8105AIBZ is rated for operation up to 125°C, but it is essential to consider the thermal derating curves in the datasheet to ensure that the device can operate reliably in high-temperature environments. Additionally, it is recommended to follow proper thermal design and layout guidelines to minimize thermal resistance and ensure reliable operation.
Renesas provides a range of tools and resources to help troubleshoot and debug issues with the ISL8105AIBZ, including evaluation boards, software development kits, and application notes. Additionally, it is recommended to use oscilloscopes, logic analyzers, and other debugging tools to monitor the device's behavior and identify potential issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL8105AIBZ Overview

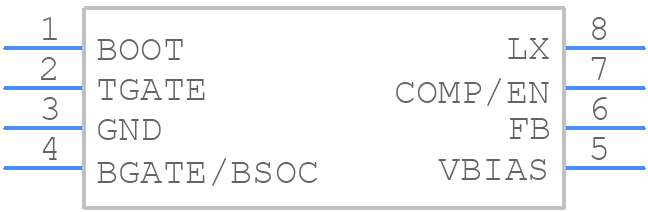

Use the download button to access the ISL8105AIBZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL81,
or try a keyword search, such as Switching Regulator or Controllers
