Description:The ISL8105, ISL8105A is a simple single-phase PWM controller for a synchronous buck converter. It operates from +5V or +12V bias supply voltage. With integrated linear regulator, boot diode, and N-Channel MOSFET gate drivers, the ISL8105, ISL8105A reduces external component count and board space requirements. These make the IC suitable for a wide range of applications. Utilizing voltage-mode control, the output voltage can be precisely regulated to as low as 0. 6V. The 0. 6V internal reference features a m
Renesas provides a recommended PCB layout in the ISL8105IBZ evaluation board user manual, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
To ensure the ISL8105IBZ operates within the specified junction temperature range, it's essential to provide adequate heat sinking, such as a thermal pad or heat sink, and to follow the recommended PCB layout guidelines. Additionally, monitoring the device's temperature and adjusting the operating conditions accordingly can help prevent overheating.
Not using the recommended input and output capacitors can lead to reduced performance, increased noise, and potential instability. The recommended capacitors are selected to ensure the device operates within the specified parameters, and omitting or substituting them may compromise the device's performance and reliability.
To troubleshoot issues with the ISL8105IBZ, start by verifying the input voltage, output voltage, and current levels. Check for proper PCB layout, component selection, and soldering quality. Consult the datasheet and application notes for guidance on troubleshooting common issues, and consider using Renesas' evaluation boards and development tools to aid in debugging.
Yes, the ISL8105IBZ is suitable for high-reliability and automotive applications. Renesas provides a range of documentation, including AEC-Q100 qualification, to support the use of the ISL8105IBZ in these applications. However, it's essential to consult with Renesas' technical support and follow the recommended design and testing guidelines to ensure the device meets the specific requirements of the application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL8105IBZ Overview

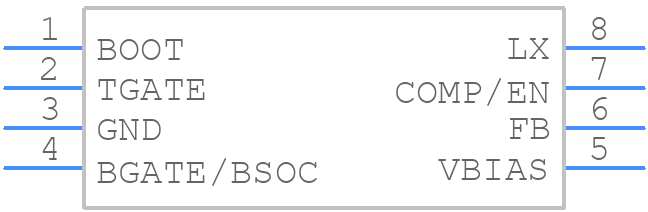

Use the download button to access the ISL8105IBZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL81,
or try a keyword search, such as Switching Regulator or Controllers
