ISL8107IRZ-T - Renesas Electronics

Description: The ISL8107 is a single phase, non-synchronous buck controller with an integrated high-side MOSFET driver. The controller operates from 9V to 75V input voltage range. The internal 1.192V reference voltage has a tolerance of ±1% over the industrial temperature range. The ISL8107 employs voltage-mode control with feedforward compensation to provide optimal transient response and a constant loop gain over a wide input voltage range. The switching frequency can be programmed from 100kHz to 600kHz by external re

Download ISL8107IRZ-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

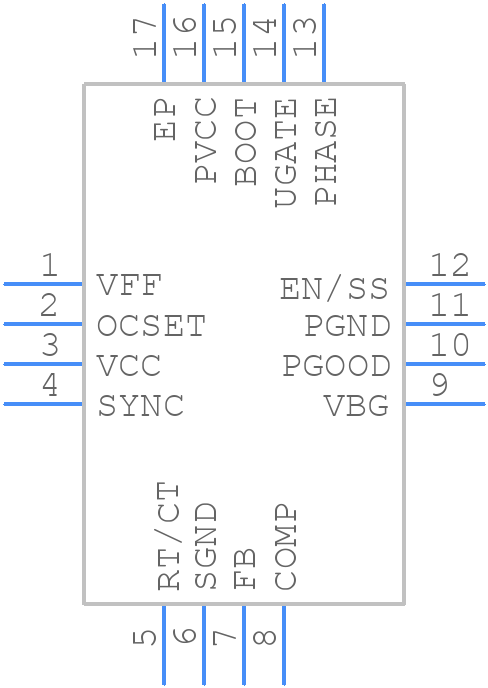

ISL8107IRZ-T - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL8107IRZ-T - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16 Ld 5x5 QFN-
click to zoom
3D Models
ISL8107IRZ-T - Renesas Electronics - 3D model - Quad Flat No-Lead - 16 Ld 5x5 QFN-
click to zoom

ISL8107IRZ-T Details

  • Manufacturer Part Number:

    ISL8107IRZ-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    L16.5X5B

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-10-23

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    75 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    3 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    600 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ISL8107IRZ-T Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout in the ISL8107IRZ-T evaluation board user manual, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • The ISL8107IRZ-T has an internal undervoltage lockout (UVLO) circuit that ensures the device is properly biased during startup. To ensure proper biasing, make sure the input voltage rises monotonically and does not drop below the UVLO threshold (typically 2.5V) during startup.
  • The ISL8107IRZ-T can drive capacitive loads up to 10nF, but it's recommended to limit the load capacitance to 4.7nF or less to ensure stable operation and minimize ringing on the output.
  • The output voltage ripple and noise can be calculated using the equations provided in the datasheet, taking into account the input voltage, output voltage, switching frequency, and output capacitance. Additionally, Renesas provides a noise calculation tool on their website to simplify the process.
  • Renesas recommends using a low-ESR ceramic capacitor (e.g., X5R or X7R) with a value of 10uF to 22uF as the input capacitor. This helps to filter out input voltage noise and ensure stable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISL8107IRZ-T Overview

Use the download button to access the ISL8107IRZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL81, or try a keyword search, such as Switching Regulator or Controllers
