Description:The ISL8115 is a synchronous buck PWM controller with current sharing capability. The current sharing function allows multiple modules to be connected in parallel to achieve higher output current and to reduce input and output ripple current, resulting in fewer components and reduced output dissipation. Utilizing voltage-mode control with input voltage feed-forward compensation, the ISL8115 maintains a constant loop gain for optimal transient response, especially for applications with a wide input voltage r
Renesas provides a recommended PCB layout guide in the ISL8115FRTZ evaluation board user manual, which includes guidelines for component placement, thermal management, and routing. Following this guide can help ensure optimal performance and minimize electromagnetic interference (EMI).
The inductor value selection depends on the output voltage, output current, and switching frequency. Renesas provides an inductor selection guide in the ISL8115FRTZ datasheet, which includes a formula to calculate the recommended inductance value. Additionally, online inductor selection tools can be used to simplify the process.
The ISL8115FRTZ has a maximum ambient temperature rating of 105°C, but the device can operate up to 125°C with derating. It's essential to consider the thermal management and heat dissipation in the system design to ensure reliable operation.
Yes, the ISL8115FRTZ is AEC-Q100 qualified, which makes it suitable for automotive and high-reliability applications. However, it's essential to follow the recommended design and testing guidelines to ensure the device meets the specific application requirements.
The ISL8115FRTZ has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The datasheet provides a detailed explanation of the overcurrent protection circuit and the calculation formula for the resistor and capacitor values.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL8115FRTZ Overview

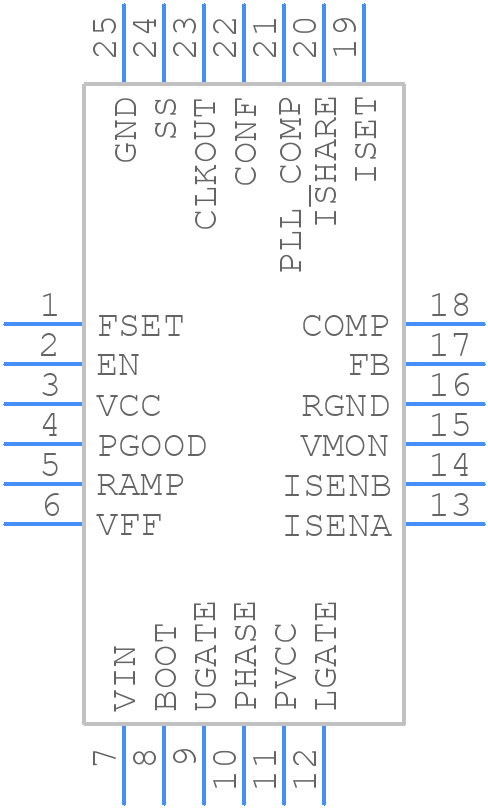

Use the download button to access the ISL8115FRTZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL81,
or try a keyword search, such as Switching Regulator or Controllers
