Description:The ISL8117A is a synchronous buck controller to generate POL voltage rails and bias voltage rails for a wide variety of applications in industrial and general purpose segments. Its wide input and output voltage ranges make it suitable for telecommunication and after-market automotive applications. ISL8117A is a derivative from the ISL8117 by replacing its CLKOUT pin with COMP pin to provide flexibility to customers to configure the voltage loop compensation externally.The ISL8117A uses the valley current m
A good PCB layout for the ISL8117AFRZ-T7A involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces to reduce EMI and noise.
To ensure stability, it's essential to choose the correct output capacitor value and type, and to follow the recommended layout guidelines. Additionally, the output voltage can be stabilized by adding a small ceramic capacitor (e.g., 10nF) in parallel with the output capacitor.
The maximum ambient temperature range for the ISL8117AFRZ-T7A is -40°C to +125°C. However, the device's performance and reliability may degrade if operated at extreme temperatures for extended periods.
Yes, the ISL8117AFRZ-T7A is suitable for high-reliability applications. It's manufactured using a robust process, and its design and testing ensure high reliability and low defect rates. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specified parameters.
To troubleshoot issues with the ISL8117AFRZ-T7A, start by verifying the input voltage, output voltage, and current consumption. Check the PCB layout and component values to ensure they match the recommended values. Use an oscilloscope to measure the output voltage ripple and noise. If the issue persists, consult the datasheet and application notes or contact Renesas Electronics Corporation's technical support.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL8117AFRZ-T7A Overview

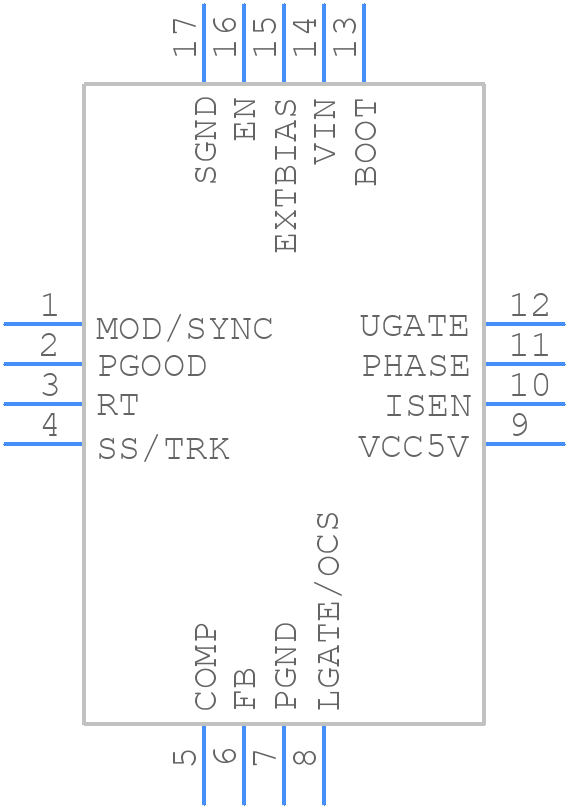

Use the download button to access the ISL8117AFRZ-T7A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL81,
or try a keyword search, such as Switching Regulator or Controllers
