Description:The ISL8117A is a synchronous buck controller to generate POL voltage rails and bias voltage rails for a wide variety of applications in industrial and general purpose segments. Its wide input and output voltage ranges make it suitable for telecommunication and after-market automotive applications. ISL8117A is a derivative from the ISL8117 by replacing its CLKOUT pin with COMP pin to provide flexibility to customers to configure the voltage loop compensation externally.The ISL8117A uses the valley current m
The ISL8117AFRZ can handle input voltages up to 18V, but it's recommended to operate within the specified input voltage range of 6.5V to 14V for optimal performance and reliability.
To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a stable input voltage. Additionally, the output voltage can be adjusted using the FB pin, and the output voltage tolerance should be considered when designing the circuit.
The ISL8117AFRZ can provide a maximum output current of 1.7A, but this may vary depending on the input voltage, output voltage, and ambient temperature. It's essential to consider the thermal and electrical characteristics of the device when designing the circuit.
To protect the ISL8117AFRZ from overheating, it's essential to provide adequate heat sinking, ensure good airflow, and operate the device within the recommended temperature range of -40°C to 125°C. Additionally, the device's thermal shutdown feature can help prevent damage from overheating.
The EN (Enable) pin is used to enable or disable the device. When the EN pin is pulled high, the device is enabled, and when it's pulled low, the device is disabled. This pin can be used to implement power sequencing, shutdown, or low-power modes in the system.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL8117AFRZ Overview

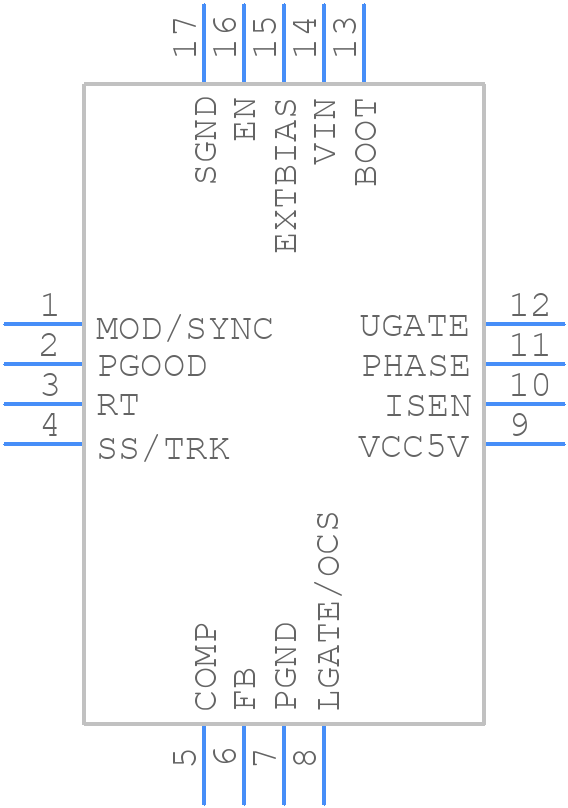

Use the download button to access the ISL8117AFRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL81,
or try a keyword search, such as Switching Regulator or Controllers
