Part Image

ISL8118EVAL1Z - Renesas Electronics

Description: The ISL8118EVAL1Z evaluation board highlights the operations of the ISL8118 pulse width modulation (PWM) controller in a DC/DC application.The ISL8118 is a single-phase PWM controller for a synchronous buck converter with an integrated MOSFET driver that operates from +3.3V to +20V bias supply voltage. Utilizing voltage-mode operation with input voltage feed-forward compensation, the ISL8118 maintains a constant loop gain, providing optimal transient response for applications with a wide input operating vol

Download ISL8118EVAL1Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

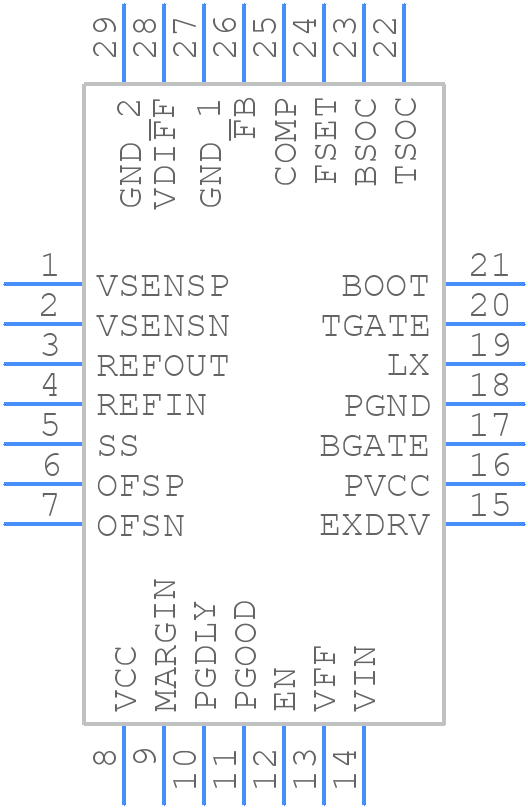

ISL8118EVAL1Z - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL8118EVAL1Z - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L28.5x5 28 LEAD QUAD FLAT NO-LEAD PLASTIC PACKAGE
click to zoom
3D Models
ISL8118EVAL1Z - Renesas Electronics - 3D model - Quad Flat No-Lead - L28.5x5 28 LEAD QUAD FLAT NO-LEAD PLASTIC PACKAGE
click to zoom

ISL8118EVAL1Z Details

  • Manufacturer Part Number:

    ISL8118EVAL1Z

  • Manufacturer:

    Renesas Electronics Corporation

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISL8118EVAL1Z Overview

Use the download button to access the ISL8118EVAL1Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL81, or try a keyword search, such as Switching Regulator or Controllers

Parts related to ISL8118EVAL1Z

Showing 0 results
