Description:The ISL8120 integrates two voltage-mode PWM leading-edge modulation control, with input feed-forward synchronous buck PWM controllers, to control a dual independent voltage regulator or a 2-phase single output regulator. It also integrates current sharing control for the power module to operate in parallel, which offers high system flexibility. The ISL8120 integrates an internal linear regulator, which generates VCC from input rail for applications with only one single supply rail. The internal oscillator i
Renesas provides a recommended PCB layout guide in the ISL8120CRZ evaluation board user manual, which includes guidelines for component placement, thermal management, and routing to minimize noise and ensure optimal performance.
The selection of input and output capacitors depends on the specific requirements of your application, including the input voltage range, output voltage, and desired ripple and noise performance. Renesas provides guidance on capacitor selection in the ISL8120CRZ datasheet and application notes.
The ISL8120CRZ is rated for operation from -40°C to +125°C, but the maximum ambient temperature range for reliable operation depends on the specific application and thermal management. Renesas recommends following the thermal design guidelines in the datasheet and application notes to ensure reliable operation.
The ISL8120CRZ has built-in overcurrent protection and short-circuit protection features. To implement these features, follow the guidelines in the datasheet and application notes, which include recommendations for setting the overcurrent threshold and implementing fault detection and response.
The recommended startup sequence for the ISL8120CRZ is to first apply the input voltage, then enable the device by setting the EN pin high. This ensures that the internal voltage regulators are properly initialized and that the device starts up in a stable state.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL8120CRZ Overview

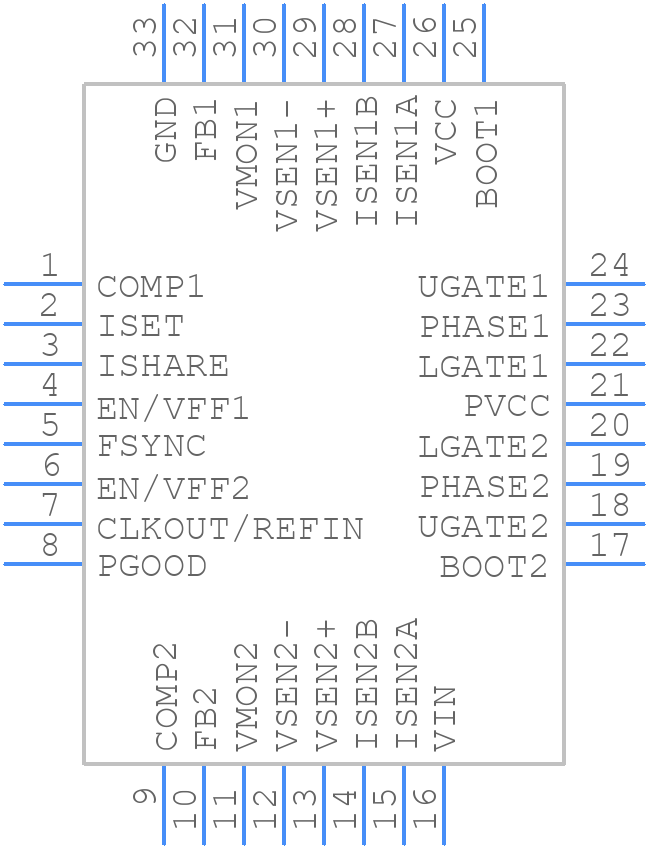

Use the download button to access the ISL8120CRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL81,
or try a keyword search, such as Switching Regulator or Controllers
