Description:The ISL8130 is a versatile controller that integrates control, output adjustment, monitoring, and protection functions into a single package for synchronous Buck, standard Boost, SEPIC, and Flyback topologies. The ISL8130 provides simple, single feedback loop, voltage mode control with fast transient response. The output voltage of the converter can be precisely regulated to as low as 0. 6V. The switching frequency is adjustable from 100kHz to 1. 4MHz. The error amplifier features a 15MHz gain-bandwidth pro
Renesas provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors close to the device.
Follow the power-up sequence and configuration guidelines outlined in the datasheet. Ensure that the input voltage is within the recommended range, and that the EN pin is properly driven to enable the device. Also, make sure to configure the device's registers according to the application requirements.
The ISL8130IRZ-T7A has an operating temperature range of -40°C to +125°C, but it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
Use a logic analyzer or oscilloscope to monitor the device's signals and verify that they are within the expected ranges. Check the device's configuration and register settings to ensure they are correct. Also, consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
Yes, the ISL8130IRZ-T7A is designed to meet the requirements of high-reliability and safety-critical applications. However, it's essential to follow Renesas' guidelines for designing and testing safety-critical systems, and to consult with Renesas' technical support team for specific guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL8130IRZ-T7A Overview

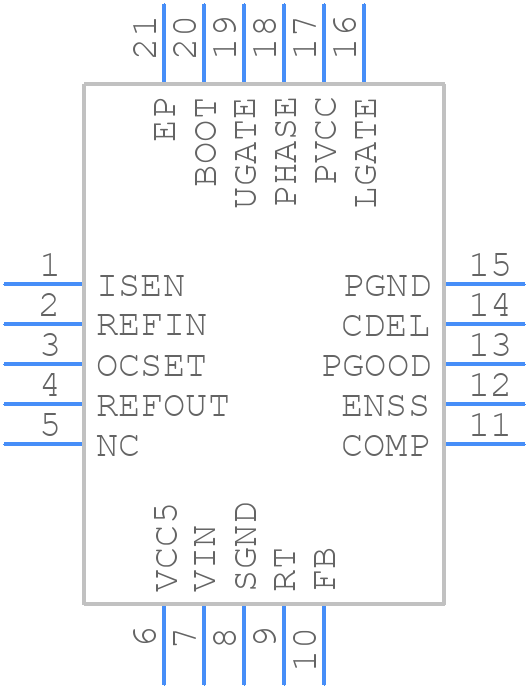

Use the download button to access the ISL8130IRZ-T7A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL81,
or try a keyword search, such as Switching Regulator or Controllers
