ISL81601EVAL1Z - Renesas Electronics

Description: The ISL81601EVAL1Z evaluation board features the ISL81601, a 60V high voltage synchronous buck-boost controller that offers external soft-start and independent enable functions, and integrates UV/OV/OC/OT protections. A programmable switching frequency ranging from 100kHz to 600kHz helps to optimize inductor size while the strong gate driver delivers up to 20A for the buck-boost output.

Download ISL81601EVAL1Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

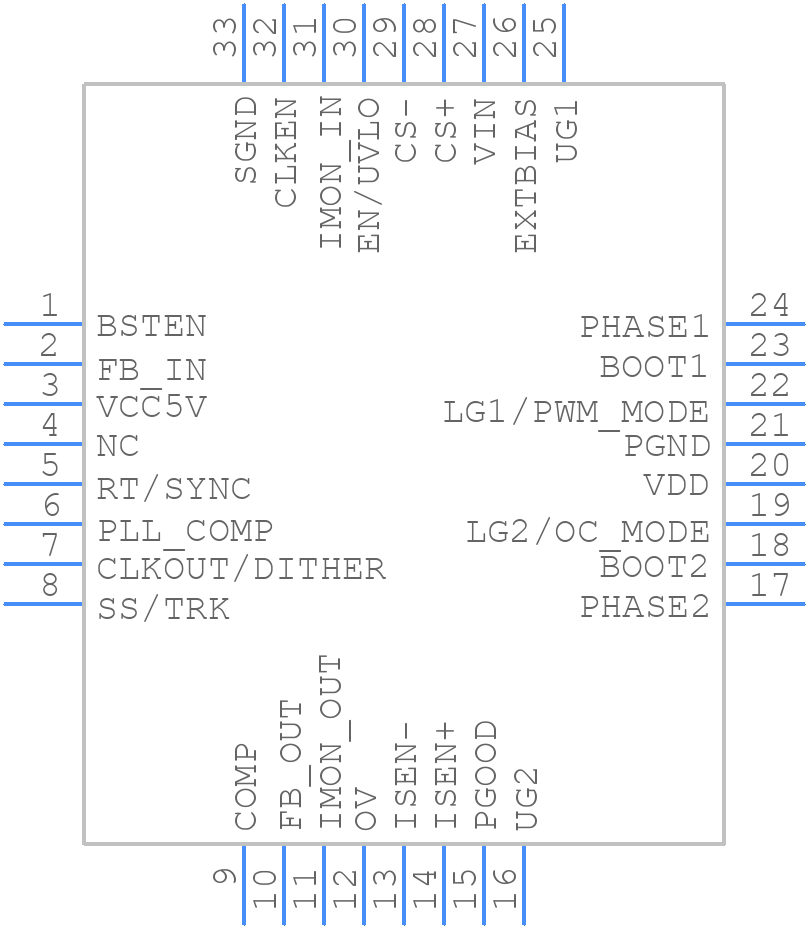

ISL81601EVAL1Z - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL81601EVAL1Z - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L32.5x5B 32 LEAD QUAD FLAT NO-LEAD PLASTIC PACKAGE
click to zoom
3D Models
ISL81601EVAL1Z - Renesas Electronics - 3D model - Quad Flat No-Lead - L32.5x5B 32 LEAD QUAD FLAT NO-LEAD PLASTIC PACKAGE
click to zoom

ISL81601EVAL1Z Details

  • Manufacturer Part Number:

    ISL81601EVAL1Z

  • Manufacturer:

    Renesas Electronics Corporation

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISL81601EVAL1Z Overview

Use the download button to access the ISL81601EVAL1Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL81, or try a keyword search, such as Switching Regulator or Controllers
