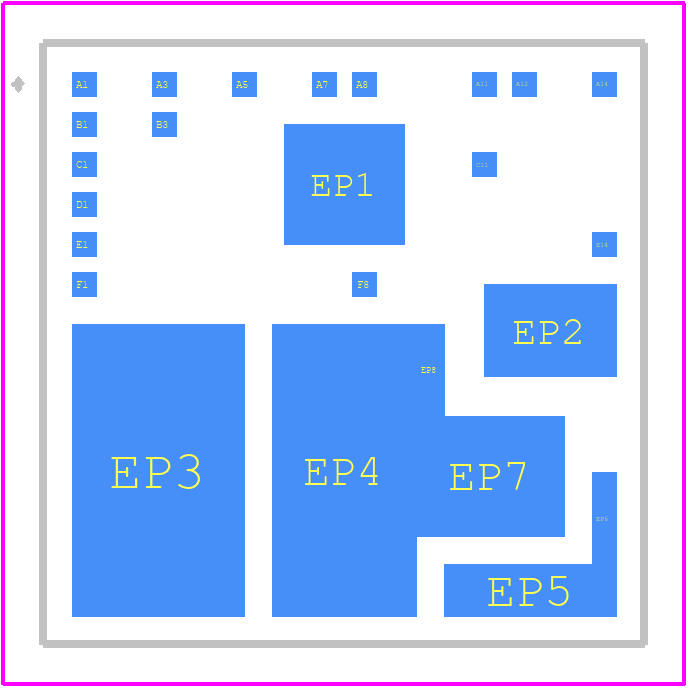

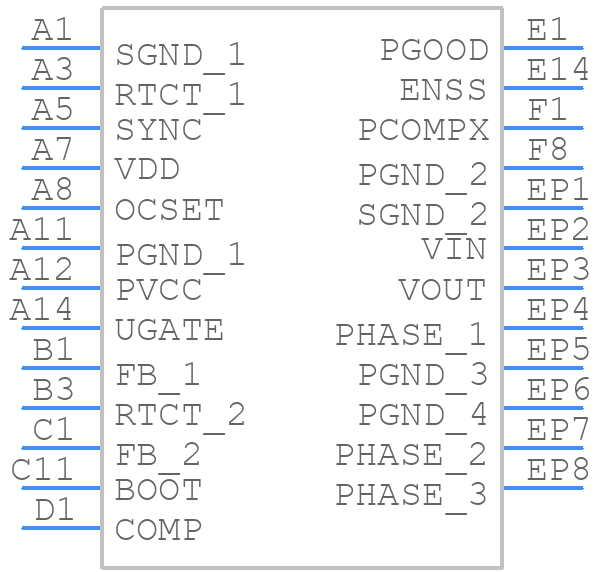

ISL8216MIRZ - Renesas Electronics

ISL8216MIRZ Details

• Manufacturer Part Number:

  ISL8216MIRZ

• Brand Name:

  Renesas

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  Module

• Package Description:

  HDA-22

• Pin Count:

  22

• Manufacturer Package Code:

  Y22.15X15

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2018-07-18

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  80 V

• Input Voltage-Min:

  10 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  S-XXMA-N22

• JESD-609 Code:

  e4

• Length:

  15 mm

• Load Regulation-Max:

  0.15%

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  22

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  4 A

• Output Voltage-Max:

  30 V

• Output Voltage-Min:

  2.5 V

• Output Voltage-Nom:

  12 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  XMA

• Package Shape:

  SQUARE

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Peak Reflow Temperature (Cel):

  245

• Seated Height-Max:

  3.7 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  600 kHz

• Technology:

  HYBRID

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Position:

  UNSPECIFIED

• Time@Peak Reflow Temperature-Max (s):

  30

• Total Power Output-Max:

  48 W

• Trim/Adjustable Output:

  YES

• Width:

  15 mm
