ISL84467IVZ - Renesas Electronics

Description: The Intersil ISL84467 device is a low ON-resistance, low voltage, bidirectional, Quad SPDT (Dual DPDT) analog switch designed to operate from a single +1. 65V to +4. 5V supply. Targeted applications include battery powered equipment that benefit from low rON (0. 39Ω) and fast switching speeds (tON = 33ns, tOFF = 16ns). The digital logic input is 1. 8V logic-compatible when using a single +3V supply. With a supply voltage of 4. 2V and logic high voltage of 2. 85V at both logic inputs, the part draws only 12µ

Download ISL84467IVZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

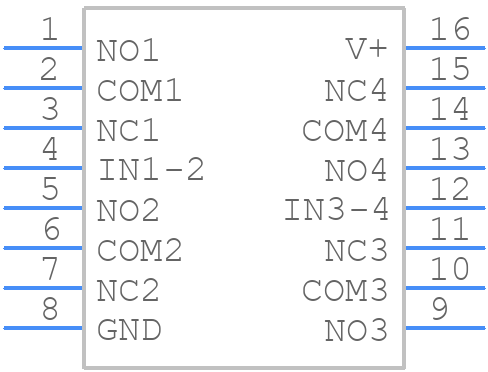

ISL84467IVZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL84467IVZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M16.173A
click to zoom
3D Models
ISL84467IVZ - Renesas Electronics - 3D model - Small Outline Packages - M16.173A
click to zoom

ISL84467IVZ Details

  • Manufacturer Part Number:

    ISL84467IVZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Pin Count:

    16

  • Manufacturer Package Code:

    M16.173

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Date Of Intro:

    2017-10-23

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • On-state Resistance-Max (Ron):

    0.95 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Signal Current-Max:

    0.3 A

  • Supply Current-Max (Isup):

    0.013 mA

  • Supply Voltage-Max (Vsup):

    4.5 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ISL84467IVZ Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout in the ISL84467EVKIT1Z evaluation kit documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize EMI.
  • The ISL84467IVZ has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer. Additionally, the device's thermal shutdown feature can be enabled to prevent overheating.
  • The recommended input capacitor value is 1uF to 10uF, with a low ESR (Equivalent Series Resistance) and a voltage rating of at least 25V. X5R or X7R ceramic capacitors are suitable options. The input capacitor should be placed as close to the VIN pin as possible.
  • Renesas provides a range of application notes and design guides that provide configuration examples for specific applications, such as USB-C power delivery, battery charging, and power backup. These resources can be found on the Renesas website.
  • The ISL84467IVZ has a power-up sequence that ensures the output voltage is stable before enabling the output. During power-down, the device enters a low-power shutdown mode to minimize power consumption. The power-up and power-down sequences can be controlled using the EN pin.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISL84467IVZ Overview

Use the download button to access the ISL84467IVZ schematic symbol, PCB footprint, and 3D model.
