Part Image

ISL84581IAZ - Renesas Electronics

Description: The Intersil ISL84581 device contains precision, bidirectional, analog switches configured as an 8-to-1 multiplexer/demultiplexer. It was designed to operate from a single +2V to +12V single supply or from dual ±2V to ±6V supplies. The device has an inhibit pin to simultaneously open all signal paths. The ISL84581 has an ON-resistance of 39Ω with a dual ±5V supply and 125Ω with a single +3. 3V supply. Each switch can handle rail-to-rail analog signals. The off-leakage current is only 0. 02nA at +25°C or 0.

Download ISL84581IAZ Model

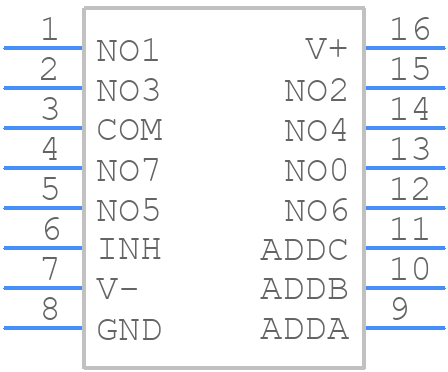

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ISL84581IAZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - QSOP-16 L
click to zoom
3D Models
ISL84581IAZ - Renesas Electronics  - 3D model - Small Outline Packages - QSOP-16 L
click to zoom

ISL84581IAZ Details

  • Manufacturer Part Number:

    ISL84581IAZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QSOP

  • Package Description:

    QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    M16.15A

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2017-10-23

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Analog IC - Other Type:

    DIFFERENTIAL MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.89 mm

  • Moisture Sensitivity Level:

    2

  • Neg Supply Voltage-Max (Vsup):

    -6 V

  • Neg Supply Voltage-Min (Vsup):

    -2 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Normal Position:

    NO/NC

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    92 dB

  • On-state Resistance Match-Nom:

    1.3 Ω

  • On-state Resistance-Max (Ron):

    60 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.73 mm

  • Signal Current-Max:

    0.03 A

  • Supply Current-Max (Isup):

    0.007 mA

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    40 ns

  • Switch-on Time-Max:

    60 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ISL84581IAZ Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the ISL84581IAZ. Renesas recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital sections separate. Additionally, use short traces and avoid vias under the IC. Refer to the Renesas application note AN1443 for more details.
  • The ISL84581IAZ has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the PCB is properly grounded. For additional protection, consider adding external ESD diodes or TVS devices.
  • To ensure proper operation, power up the VCC pin first, followed by the VDD pin. The power-up sequence should be VCC > VDD > EN. This sequence helps prevent latch-up and ensures that the internal voltage regulators are properly initialized.
  • To minimize power consumption, use the lowest possible supply voltage (VCC and VDD), and adjust the EN pin to control the device's operating mode. Additionally, consider using the device's built-in shutdown mode (EN = 0) when not in use. Refer to the datasheet for more information on power-saving modes.
  • The ISL84581IAZ is rated for operation from -40°C to +125°C (junction temperature). However, the device's performance may degrade at extreme temperatures. Ensure that the device is properly heat-sinked and that the operating temperature is within the recommended range for optimal performance.
