Description:The ISL85005 and ISL85005A are monolithic, synchronous buck regulators with integrated 5A, 18V high-side and low-side FETs. These devices provide an integrated bootstrap diode for the high-side gate driver to reduce the external parts count. These devices also have a wide input voltage range to support applications with input voltage from multi-cell batteries or regulated 5V and 12V power rails. The ISL85005 and ISL85005A regulate the output voltage with current mode control and have an internal oscillator.
Renesas provides a recommended PCB layout in the ISL85005 evaluation board user manual, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal heat dissipation.
To ensure reliable start-up and shutdown, it is recommended to follow the power-up and power-down sequencing guidelines in the datasheet, and to use a soft-start circuit to limit the inrush current during start-up. Additionally, a capacitor should be placed between the VIN and GND pins to filter out noise and ensure stable operation.
The maximum allowed voltage on the EN pin is 6V, as specified in the datasheet. Exceeding this voltage may damage the device. It is recommended to use a voltage divider or a level shifter to ensure that the EN pin voltage does not exceed 6V.
The ISL85005AFRZ-T is rated for operation up to 125°C, but it is recommended to derate the output current and voltage according to the thermal derating curves provided in the datasheet. Additionally, it is essential to ensure proper heat sinking and thermal management to prevent overheating.
To troubleshoot issues with the device not turning on or not regulating the output voltage, check the input voltage, enable pin voltage, and output voltage using an oscilloscope or multimeter. Verify that the input voltage is within the specified range, the enable pin is properly biased, and the output voltage is within the specified tolerance. Also, check for any signs of overheating, such as excessive temperature or thermal shutdown.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL85005AFRZ-T Overview

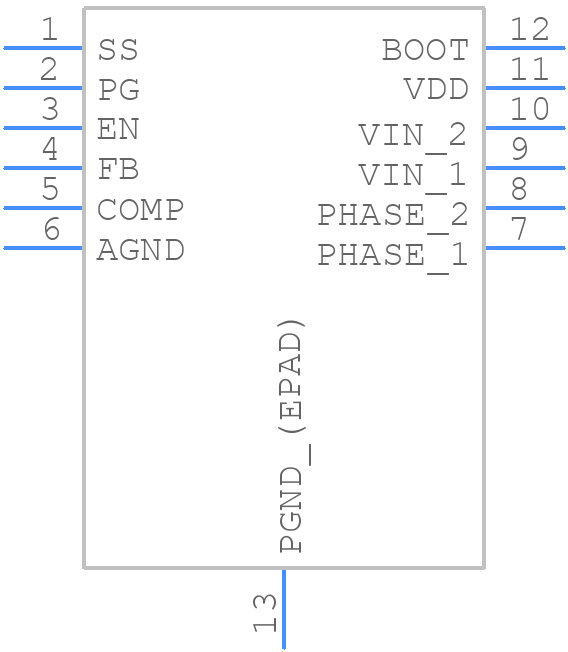

Use the download button to access the ISL85005AFRZ-T schematic symbol, PCB footprint, and 3D model.
