Description:The ISL85005 and ISL85005A are monolithic, synchronous buck regulators with integrated 5A, 18V high-side and low-side FETs. These devices provide an integrated bootstrap diode for the high-side gate driver to reduce the external parts count. These devices also have a wide input voltage range to support applications with input voltage from multi-cell batteries or regulated 5V and 12V power rails. The ISL85005 and ISL85005A regulate the output voltage with current mode control and have an internal oscillator.
A good thermal design should include a solid ground plane, thermal vias under the IC, and a heat sink if necessary. The datasheet provides some guidelines, but a more detailed application note or a reference design would be helpful.
The datasheet provides a starting point for the compensation network, but the optimal values may vary depending on the specific application. A good approach is to use the datasheet values as a starting point and then adjust them based on the specific requirements of the design.
The datasheet specifies that the EN pin should be driven between 0V and VCC, but it does not explicitly state the maximum allowed voltage. As a general rule, it's recommended to keep the EN pin voltage within the VCC range to ensure proper operation.
The datasheet specifies an operating temperature range of -40°C to 125°C, but the device may not perform optimally at the extremes of this range. It's recommended to consult with the manufacturer or a thermal expert to determine the suitability of the device for high-temperature applications.
The datasheet provides some guidelines for EMC, but a more detailed analysis of the system's electromagnetic environment and the device's susceptibility to interference is necessary. It's recommended to consult with an EMC expert or follow established EMC design practices.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL85005AFRZ-T7A Overview

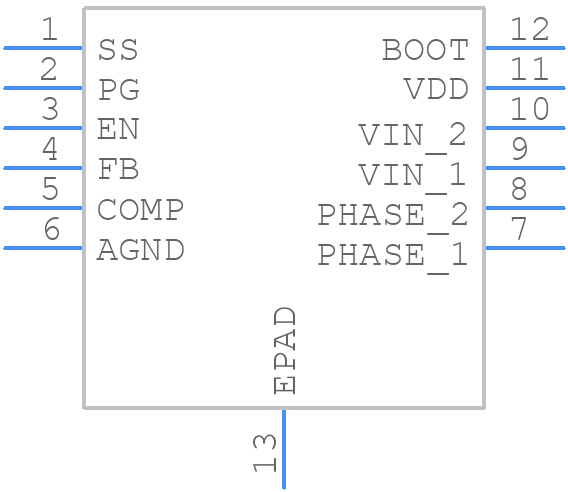

Use the download button to access the ISL85005AFRZ-T7A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL85,
or try a keyword search, such as Switching Regulator or Controllers
