Renesas provides a recommended PCB layout in the ISL85009FRZ-T evaluation board user manual, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
To ensure reliable start-up and shutdown, it is recommended to follow the power-up and power-down sequencing guidelines provided in the datasheet, and to use a soft-start circuit to limit the inrush current during power-up.
The maximum allowed voltage on the EN pin is 6V, as specified in the datasheet. Exceeding this voltage may damage the device.
The ISL85009FRZ-T is rated for operation up to 125°C, but it is recommended to derate the output current and voltage according to the thermal derating curves provided in the datasheet to ensure reliable operation in high-temperature environments.
To troubleshoot issues with the output voltage regulation, check the input voltage, output voltage, and feedback voltage levels using an oscilloscope or multimeter, and verify that the feedback network is properly configured and connected.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL85009FRZ-T Overview

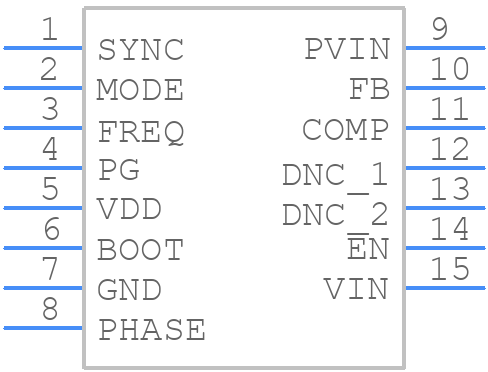

Use the download button to access the ISL85009FRZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL85,
or try a keyword search, such as Switching Regulator or Controllers
