Description:The ISL85012 is a highly efficient, monolithic, synchronous buck regulator that can deliver 12A of continuous output current from a 3.8V to 18V input supply. The device uses current mode control architecture with a fast transient response and excellent loop stability. The ISL85012 integrates very low ON-resistance high-side and low-side FETs to maximize efficiency and minimize external component count. The minimum BOM and easy layout footprint are extremely friendly to space constraint systems. The operatio
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using a 2-layer or 4-layer board, and minimizing the distance between the device and the thermal pad or heat sink. Additionally, using thermal vias and a solid ground plane can help to dissipate heat more efficiently.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines, use a heat sink or thermal pad, and ensure good airflow around the device. Additionally, consider using a device with a higher temperature rating or implementing thermal monitoring and shutdown mechanisms.
The recommended input and output capacitors for the ISL85012FRZ-T7A are 10uF to 22uF X7R or X5R ceramic capacitors with a voltage rating of 10V to 25V. The capacitor values and types may vary depending on the specific application and operating conditions.
To troubleshoot issues with the device's output voltage regulation, check the input voltage, output voltage, and output current. Verify that the input voltage is within the recommended range, and the output voltage is within the specified tolerance. Also, check for any signs of overheating, and ensure that the device is properly soldered and connected.
Operating the device beyond its recommended specifications can lead to reduced reliability, decreased performance, and potentially even device failure. It's essential to operate the device within its recommended specifications to ensure reliable and efficient operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL85012FRZ-T7A Overview

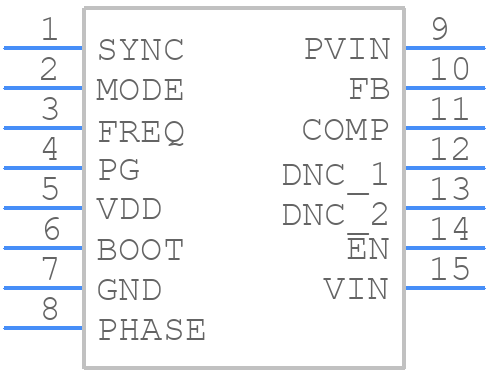

Use the download button to access the ISL85012FRZ-T7A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL85,
or try a keyword search, such as Switching Regulator or Controllers
