Description:The ISL85415 is a 500mA synchronous buck regulator with an input range of 3V to 36V. The device provides an easy-to-use high-efficiency, low BOM-count solution for a variety of applications. The ISL85415 integrates both high-side and low-side NMOS FET's and features a PFM mode for improved efficiency at light loads. The feature can be disabled if forced PWM mode is desired. The device switches at a default frequency of 500kHz, but can also be programmed using an external resistor from 300kHz to 2MHz. The IS
A good PCB layout for the ISL85415FRZ involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to use a separate analog and digital ground plane to reduce noise coupling.
To ensure the stability of the output voltage, it's essential to choose the correct output capacitor value and type. A minimum capacitance of 10uF with an ESR of 1ohm or less is recommended. Additionally, the output voltage can be stabilized by adding a 10nF capacitor in parallel with the output capacitor.
The ISL85415FRZ can handle a maximum input voltage of 18V. However, it's recommended to operate the device within the specified input voltage range of 6.5V to 16V for optimal performance and reliability.
The ISL85415FRZ has built-in overcurrent protection and thermal shutdown features. However, it's still important to add external protection components such as fuses or PTC resistors to prevent overcurrent conditions. Additionally, ensuring good airflow and using a heat sink can help prevent overheating.
The ISL85415FRZ is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the output current and voltage at high temperatures to ensure reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL85415FRZ Overview

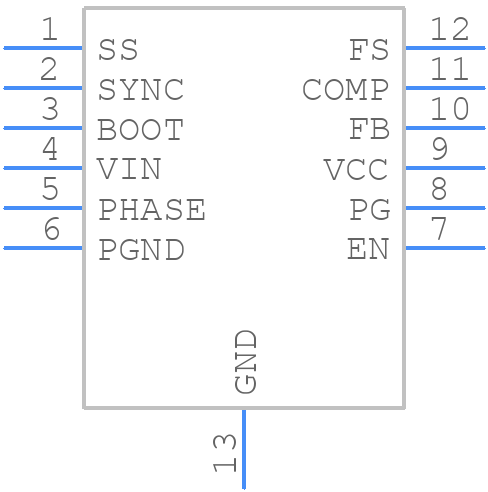

Use the download button to access the ISL85415FRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL85,
or try a keyword search, such as Switching Regulator or Controllers
